VPort 364A 4-channel H.264/MJPEG Industrial Video Encoder, 1 10

4-channel H.264/MJPEG industrial video encoder with 1 10/100/1000BaseT(X) port, 0 to 60°C operating temperature

Description

Highlights



  • Dual simultaneous H.264 and MJPEG video streams
  • Video latency under 200 ms
  • Moxa DynaStreamâ„¢ function supported for network efficiency
  • OnVIF supported for standardization and interoperability (after firmware V2.0)
  • 802.1X and SSL/SSH for advanced network security
  • Industrial design with -40 to 75°C operating temperature
  • VPort SDK PLUS provided free



Includes



  • 1 x VPort 364 video encoder
  • 2 x 5-pin terminal blocks for 2 power inputs and 2 relay outputs
  • 1 x 8-pin terminal block for 4 DIs
  • 1 x 5-pin terminal block for the RS-232/422/RS-485 PTZ control port
  • Quick installation guide (printed)
  • Documentation and software CD
  • Warranty Card

Overview

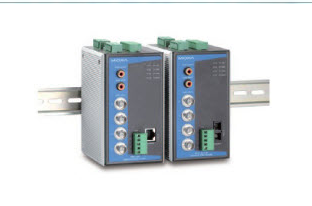

The VPort 364A is a 4-channel industrial video encoder that supports the H.264 video compression algorithm, which uses less bandwidth than other video compression standards; the VPort 364 provides the best video quality available on the market today. In addition, the VPort 364A supports simultaneous dual video streams with different formats: H.264 and MJPEG. The two video streams can be used for different purposes, such as viewing, recording, or analysis. In addition, the rugged industrial design with -40 to 75°C operating temperature, built-in fiber Ethernet ports, IP30 form factor protection, and industrial certifications, make the VPort 364 highly suitable for use in harsh environments.
