Description
Highlights
- Industrial design with -40 to 75°C operating temperature and
- fiber optic Ethernet port
- Video stream up to 30 frames/sec at full D1 (720 x 480) resolution
- Pre/post-alarm video recording function for advanced
- surveillance
- 2-way (1-in/1-out) audio supported
Includes

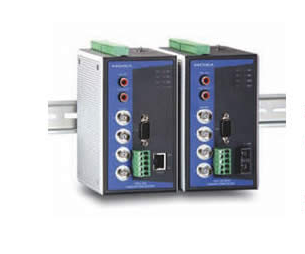

- 1 x VPort 254 Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 1 x 10-pin terminal block for 1 power input and 4 digital inputs
- 1 x 8-pin terminal block for the other power input and 2 relay outputs
- 1 x 5-pin terminal block for the RS-232/422/RS-485 PTZ control port
- 1 x RJ45 to DB9 console port cable
Specs:
Video Inputs
4, BNC connector (1.0 Vpp, 75 ohms)
NTSC/PAL
Auto-sensing or manual
Audio Inputs
1 Line-in or MIC-in with RCA connector
Audio Outputs
1 Line-out with RCA connector
Ethernet
1 10/100BaseT(X) auto negotiating RJ45 port, or 1 100BaseFX fiber port (single/multi-mode, SC connector)
Input Voltage
2 12/24 VDC or 24 VAC inputs for redundancy
Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
