Description
Includes
- 1 x V2401/2402 Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 1 x terminal block to power jack converter
- 1 x PS2 to KB/MS Y-type cable
- 1 x wall mounting kit
Specs:
CPU
Intel Atom N270 1.6 GHz processor
OS (pre-installed)
Linux, Windows CE 6.0 or Windows Embedded Standard 2009
FSB
533 MHz
System
Chipset Intel 945GSE + ICH7-M
BIOS
8 Mbit Flash BIOS, SPI type, ACPI function supported
System Memory
1 x 200-pin DDR2 SODIMM socket support DDR2 533 up to 2 GB, built-in 1 GB
USB
USB 2.0 compliant hosts x 6, type A connector, supports system boot up
Other
Other Peripherals
KB/MS: 1 PS/2 interface supporting standard PS/2 keyboard and mouse through Y-type cable
Audio: HD audio, with line-in and line-out interface
Built-in
2 GB onboard industrial DOM to store OS
Expansion
CompactFlash socket for CF card expansion, supporting CF Type-I/II socket with DMA mode
HDD Support: SATA-150 connector for HDD expansion
Overview:

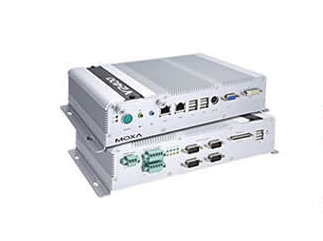

The V2401/2402 Series embedded computers are based on the Intel Atom N270 x86 processor, and feature 4 RS-232/422/485 serial ports, 8 RS-232 serial ports, dual Gigabit LAN ports, 6 USB 2.0 hosts, and a CompactFlash socket. The V2401 computer provides VGA, DVI-I, and LVDS outputs, and the V2402 computer provides both VGA and DVI-I outputs, making them particularly well-suited for industrial applications such as Automatic Fare Collection.
The V2401 and V2402 come with 4 RS-232/422/485 serial ports, and the V2401 has an additional 8 RS-232 ports, making them ideal for connecting a wide range of serial devices, and the dual 10/100/1000 Mbps Ethernet ports offer a reliable solution for network redundancy, promising continuous operation for data communication and management. As an added convenience, the V2401/2402 computers have 4 DIs, and 4 DOs for connecting digital input/output devices. In addition, the CompactFlash and USB sockets provide the V2401/2402 computers with the reliability needed for industrial applications that require data buffering and storage expansion.
Pre-installed with Linux, Windows CE 6.0, or Windows Embedded Standard 2009, the V2401/2402 Series provides programmers with a friendly environment for developing sophisticated, bug-free application software at a low cost
