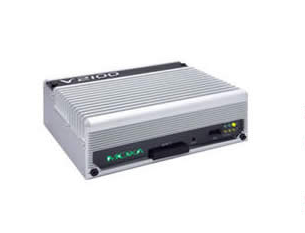

V2101-T-XPE Embedded computer with Intel Atom Z510PT, VGA, LVDS

Description

Includes

• 1 x V2101 Series unit
• 1 x support CD/DVD
• 1 x installation guide
• 1 x warranty statement
• 1 x terminal block to power jack converter
• 1 x DIN-rail mounting kit
• 1 x wall mounting kit

Specs:

CPU

Intel Atom Z510PT 1.1 GHz processor

OS (pre-installed)

Linux, Windows CE 6.0 or Windows XP Embedded System Chipset: Intel Poulsbo XL

FSB 400 MHz

System Chipset

Intel Poulsbo XL

BIOS

8Mbit Flash BIOS, PLCC type, ACPI function supported (XPe model only)
System Memory

1 x 200-pin DDR2 SODIMM socket support DDR2 400 up to 2GB max, built-in 1GB

Storage Expansion

Built-in: CompactFlash 2GB to store OS

SD socket

SD socket for SD card expansion

USB

USB 2.0 compliant hosts x 4, type A connector, supports system boot up

Graphics Controller

Intel Graphics Media Accelerator, 500
Graphics, for 2D and 3D graphics
Video: The Poulsbo XL SCH supports full hardware
acceleration of video decode standards such as H.264,
MPEG2, MPEG4, and WMV9.
SDVO: Chrontel CH7317 CRT (1280 x 1024 @ 85 Hz)
CRT Interface: CRT Interface for VGA output (DB15 female
connector)
LVDS Interface: 18-bit or 24-bit single channel LVDS (1366 x
768 @ 85 Hz)

Overview:

The V2101 embedded computers are based on the Intel Atom Z510PT x86 processor, and feature 2 serial ports, dua Gigabit LAN ports, 4 USB 2.0 hosts, and SD socket. The V2100 Series offers both VGA and LVDS outputs, making it particularly well-suited for industrial applications, such as SCADA and factory automation.

The V2101 computers’ 2 serial ports make them ideal for connecting a wide range of serial devices, and the dual 10/100/1000 Mbps Ethernet ports offer a reliable solution for network redundancy, promising continuous operation for data communication and management. As an added convenience, the V2101 computers have 3 DIs and 3 Dos for connecting digital input/output devices. In addition, the SD and USB sockets provide the V2101 computers with the reliability needed for industrial applications that require data buffering and storage expansion.

Pre-installed with Linux, Windows CE 6.0 or Windows XP Embedded, the V2101 Series provides programmers with a friendly environment for developing sophisticated, bug-free application software at a lower cost.

In addition to the standard model, the V2101 also comes in a -40 to 85°C wide temperature model for harsh industrial environments.
