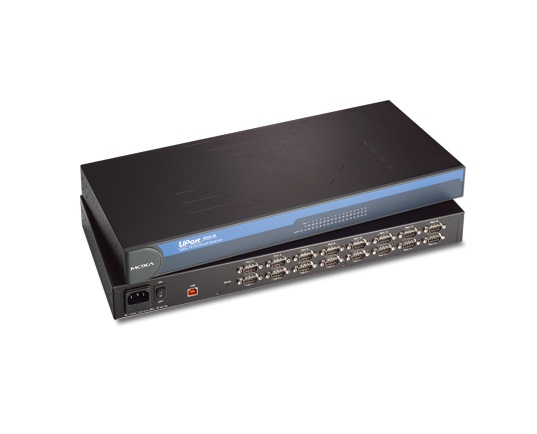

UPort 1650-16 16-port RS-232/422/485 USB-to-serial converter

UPort 1650-16 16-port RS-232/422/485 USB-to-serial converter

Highlights

Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
921.6 Kbps maximum baudrate for super fast data transmission
15N high retention USB type B connector
128-byte FIFO and on-chip H/W, S/W flow control
Standard 19-inch rack-mountable
Built-in 15 KV ESD protection on all serial ports
IP30-rated, rugged metal housing
COM port assignments maintained across different PCs
Mini DB9 female to terminal block adaptor for easy wiring
Drivers provided for Windows, WinCE, and Linux

Description

Includes

1 x UPort 1600-16 Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement
1 x USB-IF certified cable
1 x power cord
1 x mini DB9 female to terminal block adaptor (UPort 1650-16 only)

Specs:

Compliance
USB 1.1/2.0 compliant

Connector
USB type B

Speed
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Number of Ports
16

Serial Standards
UPort 1610-16 RS-232
UPort 1650-16 RS-232/422/485

Connector
DB9 male

Operating Systems
Windows (2000, XP/2003/Vista x86/x64), Win CE 5.0/6.0, Linux 2.4, Linux 2.6 x86/x64

Operating Temperature
0 to 55°C (32 to 131°F)

Input Voltage
100 to 240 VAC external power

Power Consumption
UPort 1610-16 130 mA @ 100 VAC
UPort 1650-16 150 mA @ 100 VAC

Overview:

The UPort 1600-16 USB-to-serial converters allow you to connect 16 RS-232 or RS-232/422/485 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort 1600-16 converters are compatible with new and legacy serial devices, and are perfect for mobile, instrumentation, and point-of-sale applications.
