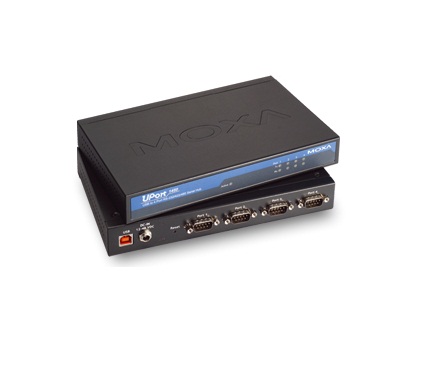

UPort 1450-I 4-port RS-232/422/485 USB-to-serial converter

UPort 1450-I 4-port RS-232/422/485 USB-to-serial converter with 2 KV optical isolation, adaptor included

Highlights

Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
921.6 Kbps maximum baudrate for super fast data transmission
15N high retention USB type B connector
128-byte FIFO and on-chip H/W, S/W flow control
Built-in 15 KV ESD protection for all serial ports
2 KV optical isolation protection (UPort 1450I only)
IP30-rated, rugged metal housing
COM port assignments maintained across different PCs
Drivers provided for Windows, WinCE, and Linux
Choose bus power or external power (UPort 1410/1450 only)
Locking power cord

Description

Includes

1 x UPort 1400 Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement
1 x USB-IF certified cable
1 x mini DB9 female to terminal block adaptor (UPort 1450 and 1450I only)
1 x power adaptor (UPort 1450 and 1450I only)

Specs:

Compliance
USB 1.1/2.0 compliant

Connector
USB type B

Speed
480 Mbps (Hi-peed USB) and 12 Mbps (Full-Speed USB)

Number of Ports
4

Serial Standards
UPort 1410 RS-232
UPort 1450/1450I RS-232/422/485

Connector
DB9 male

Operating Systems
Windows (2000, XP/2003/Vista x86/x64), WinCE 5.0/6.0, Linux 2.4, Linux 2.6 x86/x64

Operating Temperature
0 to 55°C (32 to 131°F)

Power Consumption
Bus power
UPort 1410 180 mA @ 5 VDC
12 to 48 VDC external power
UPort 1410 180 mA @ 12 VDC
UPort 1450 260 mA @ 12 VDC
UPort 1450I 360 mA @ 12 VDC

Overview:

The UPort 1400 USB-to-serial converters allow you to connect 4 RS-232 or RS-232/422/485 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort 1400 converters are compatible with new and legacy serial devices, and are perfect for mobile, instrumentation, and point-of-sale applications.
