Description
Includes
- 1 x UPort 1400 Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 1 x USB-IF certified cable
- 1 x mini DB9 female to terminal block
Specs:
Compliance
USB 1.1/2.0 compliant
Connector
USB type B
Speed
480 Mbps (Hi-peed USB) and 12 Mbps (Full-Speed USB)
Number of Ports
4
Serial Standards
UPort 1410 RS-232
UPort 1450/1450I RS-232/422/485
Connector
DB9 male
Operating Systems
Windows (2000, XP/2003/Vista x86/x64), WinCE 5.0/6.0, Linux 2.4, Linux 2.6 x86/x64
Operating Temperature
0 to 55°C (32 to 131°F)
Power Consumption
Bus power
UPort 1410 180 mA @ 5 VDC
12 to 48 VDC external power
UPort 1410 180 mA @ 12 VDC
UPort 1450 260 mA @ 12 VDC
UPort 1450I 360 mA @ 12 VDC
Overview:

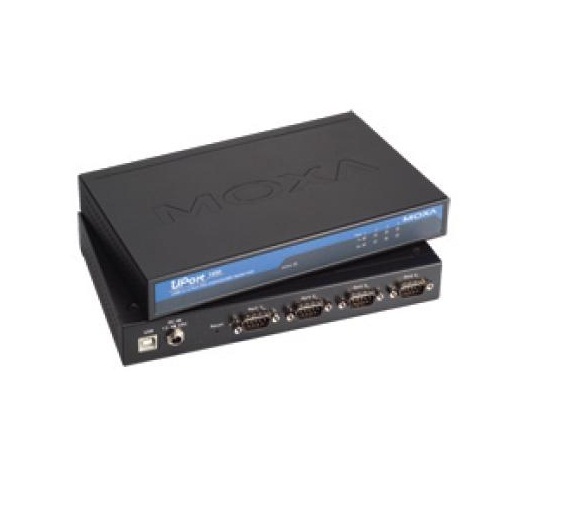

The UPort 1410 USB-to-serial converters allow you to connect 4 RS-232 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort 1410 converters are compatible with new and legacy serial devices, and are perfect for mobile, instrumentation, and point-of-sale applications.
Simplified, Hassle-free Serial Port Expansion
USB plug & play makes serial port expansion easy, and does not require IRQ, DMA, or I/O address resources. Users no longer need to open the chassis or power down the system to add COM ports,saving on setup time and cost.
Top Serial Performance
Moxa’s 20-plus years of experience in serial board design is now built into a new top performance CPU called MOXA ART. This chip equips the UPort 1410 converters with USB 2.0 (Hi-Speed 480 Mbps), a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode, making Moxa’s UPort converters perform far better than the competition.
