Description
Includes
- 1 x UPort 1100 Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 1 x mini DB9 female to terminal block adaptor (UPort 1130, 1130I, and 1150 only)
Specs:
Compliance
USB 1.0/1.1 compliant, USB 2.0 compatible
Connector
USB type A
Speed
12 Mbps (Full-Speed USB)
Number of Ports
1
Serial Standards
UPort 1110 RS-232
UPort 1130 RS-422/485
UPort 1150 RS-232/422/485
Connector
DB9 male
Operating Systems
Windows (98/ME/2000, XP/2003/Vista x86/x64), WinCE 5.0/6.0, Linux 2.4, Linux 2.6 x86/x64
Operating Temperature
0 to 55°C (32 to 131°F)
Power Consumption
UPort 1110 30 mA @ 5 VDC
UPort 1130 90 mA @ 5 VDC
UPort 1150 77 mA @ 5 VDC
Overview:

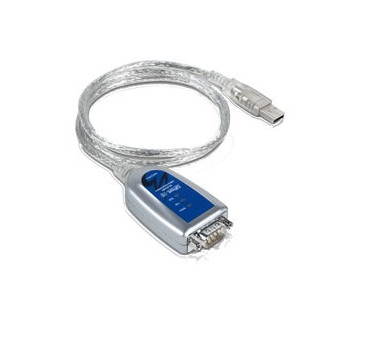

The UPort 1100 Series enables your laptop or workstation with the ability to communicate between a USB (Universal Serial Bus) port and 1 RS-232 or RS-422/485 serial peripheral. UPort 1110 adds 1 Windows serial COM port via the PC’s USB port, and is compatible with both new or legacy RS-232 devices. This plug and play USB solution is perfect for mobile, instrumentation, and point-of-sale applications.
The UPort 1110 converts from USB to RS-232, the UPort 1130 from USB to RS-422/485, and the UPort 1150 from USB to RS-232/422/485.
