Description
Includes
- 1 x UC-7101/7110/7112 Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 1 x Ethernet cable (RJ45 to RJ45 cross-over cable, 100 cm)
- 1 x CBL-4PINDB9F-100 (4-pin pin header to DB9 female console port cable, 100 cm)
- 1 x universal power adaptor (including terminal block to power jack converter)
Specs:
CPU
MOXA ART ARM9 32-bit 192 MHz processor
OS (pre-installed)
μClinux (based on Linux Kernel 2.6)
DRAM
16 MB
Flash
8 MB
LAN
auto-sensing 10/100 Mbps port (RJ45)
Serial Standards
1 RS-232/422/485 port, software-selectable (DB9 male)
Operating Temperature
Standard Models -10 to 60°C (14 to 140°F)
Wide Temp. Models -40 to 75°C (-40 to 167°F)
Input Voltage
12 to 48 VDC
Overview:

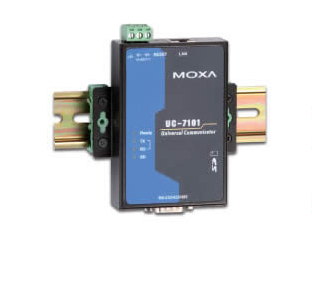

The UC-7101 may be Moxa’s smallest RISC-based communication platform for embedded applications, but it is also one of the most powerful. The computer comes with one RS-232/422/485 serial port and a 10/100 Mbps Ethernet LAN port to provide users with a versatile platform for industrial communication and embedded computing.
The UC-7101 embedded computer uses the MOXA ART ARM9 192 MHz RISC CPU, which provides a powerful computing engine and communication functions, but without generating too much heat. The built-in 8 MB NOR Flash ROM and 16 MB SDRAM give users plenty of storage capacity, and the SD socket provides greater flexibility for running a variety of applications. The LAN port built into the ARM9 CPU allows the UC-7101 computer to be used as a communication platform for basic data acquisition and protocol conversion applications, and the computer’s RS-232/422/485 serial port allows you to connect one serial device for data acquisition applications.
The UC-7101 comes with the μClinux operating system pre-installed. Software written for desktop PCs is easily ported to the UC-7101 computer with a GNU cross complier, so that you will not need to spend time modifying existing software code.
The wide temperature model of the UC-7101 supports an operating temperature from -40 to 75°C, making it suitable for any harsh environment. The combination of excellent features makes the UC-7101 embedded computer an ideal solution for a variety of industrial automation applications.
