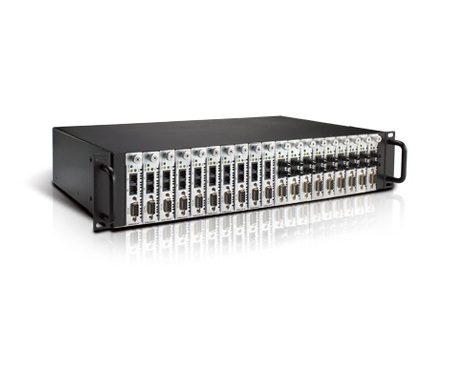

TRC-190-AC 2U rackmount chassis, single 110 to 240 VAC input

TRC-190-AC 2U rackmount chassis, single 110 to 240 VAC input, 19 slots (modules not included)

Highlights

19-inch chassis for rackmount use
19 slots for high density applications
Supports hot-swap and dual power input with redundancy
Fan-less chassis design reduces repair time

Description

Includes

1 x TRC-190 Series unit
1 x installation guide
1 x warranty statement
1 x power cord (for TRC-190-AC only)
18 x face plates

Specs:

Operating Temperature
0 to 60°C (32 to 140°F)

Input Voltage
Universal 100 to 240 VAC (47 to 63 Hz) or 12 to 48 VDC

Power Consumption
Max. Output 5.4 A @ 12 V

Overview:

The TRC-190 series provides 19 slots for media converter modules such as the TCF-142-RM series. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-190 series’power input module supports the hot-swap feature.
