Description
Includes
- 1 x TN-5308-4PoE Series unit
- 1 x installation guide
- 1 x warranty statement
Specs:
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.3af for Power-over-Ethernet
M12 Ports
10/100BaseT(X) auto negotiation speed, F/H duplex mode and auto MDI/MDI-X connection
Input Voltage
48 VDC (46 to 50 V
Max. Output Power
15.4 W
Output Voltage
44 to 48.5 VDC
Max. Output Current
350 mA
Max. Overload Protection
400 mA
Housing
Metal, IP40 protection
Shock
IEC61373
Freefall
IEC60068-2-32
Vibration
IEC61373
Overview:

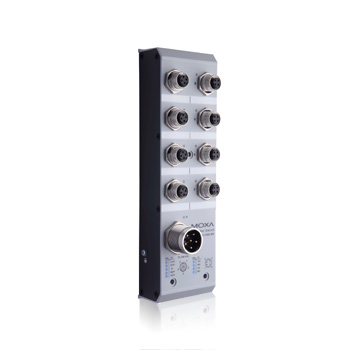

The ToughNet TN-5308-4PoE series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The TN-5308-4PoE series Ethernet switches provide 8 fast Ethernet M12 ports with 4 IEEE 802.3af compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port.
The TN-5308-4PoE switches can be used to power IEEE 802.3af compliant powered devices (PDs), eliminating the need for additional wiring. The switches support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network. Models with an extended operating temperature range of -40 to 75°C are also available. The TN-5308-4PoE switches are compliant with EN50155/50121-3-2/50121-4 (railway applications) and NEMA TS2 (traffic control systems), making them suitable for a variety of industrial applications.
