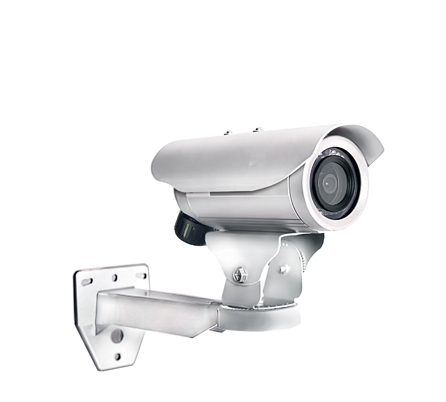

TCM-1111

Description

• Device
Device Type Bullet Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/3″ (4.8 x 3.6 mm)
Day / Night Yes
Minimum Illumination Color: 0.5 lux at F1.0 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Color to B/W switch CDS sensor based switch
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100 nm
IR LED IR LED x 20 (850 nm)
IR Working Distance 15 m (0 lux, 30 IRE, Max Exposure Gain)
Electronic Shutter 1/30 – 1/1,000 sec (60Hz); 1/25 – 1/1,000 sec (50Hz) (manual mode)
1/5 – 1/15,000 sec (auto mode)
• Lens
Focal Length / Aperture Fixed focal, f4.2 mm / F1.8
Iris Fixed iris
Focus Fixed Focus
Horizontal Viewing Angle 64.7°
• Video
Compression H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate
vs. Resolution
18 fps at 1280 x 1024 (SXGA); 26 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA);
30 fps at 320 x 240 (QVGA); 30 fps at 160 x 112 (QQVGA)
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
S/N Ratio More than 44 dB
Image Enhancement White balance: automatic, hold, predefined and manual; Brightness; Saturation; Contrast; Sharpness; Automatic
gain control; Auto exposure: automatic, predefined and manual; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP,IGMP, SMTP, FTP,
UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots;
Upload video, snapshot to FTP server
• General
Power Source /
Consumption PoE Class 2 (IEEE802.3af) / 5.76 W (IR on)
Weight 610 g (1.35 lb)
Dimensions (Ø x L) 77 mm x 193 mm (3.04″x7.60″)
Environmental Casing Weatherproof (IP66 rated)
Operating Temperature -20 °C ~ 50 °c (-4 °F ~ 122 °F)
Operating Humidity 10% ~ 85% RH
Approvals CE, FCC, IP66
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 6.0 or newer
