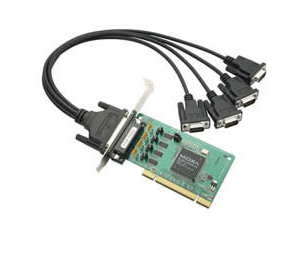

POS-104UL w/o Cable 4-port RS-232 Universal PCI board with power

POS-104UL w/o Cable 4-port RS-232 Universal PCI board with power over serial

Highlights

  • Over 800 Kbps data throughput, for top performance
  • Power options for each port: 5V (output), 12V (output),
  • RI (input)
  • Serial port power from bus or power supply
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5V PCI and PCI-X
  • Low profile board, suitable for compact-sized PCs
  • Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), Windows XP Embedded, Windows CE 5.0/6.0, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO OpenServer 5/6, UnixWare 7
  • 15 KV ESD protection on the board
  • Wide temperature model available for -40 to 85°C environments
Categories: , ,

Description

Includes

  • 1 x POS-104UL unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement
  • 1 x DB9 male cable (POS-104UL-DB9 only)

Specs:

Comm. Controller
MU860 (16C550C compatible)

Bus
32-bit Universal PCI

Connector
DB44 female

Number of Ports
4

Serial Standards
RS-232

ESD Protection
15 KV on the board

Operating Systems
Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), Windows XP Embedded, Windows CE 5.0/6.0, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO OpenServer 5/6, UnixWare 7

Dimensions
64.4 x 120 mm (2.53 x 4.72 in)

Operating Temperature
Standard Models 0 to 55°C (32 to 131°F)
Wide Temp. Models -40 to 85°C (-40 to 185°F)

Overview:

The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators.

The POS-104UL is compatible with all major operating systems. In addition, each of the board’s 4 RS-232 serial ports supports data rates up to 921.6 Kbps, and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power from each serial port, and works with both 3.3V and 5V PCI buses, making it suitable for installation in most PC servers.
