Description
Includes
- OnCell cellular router
- Rubber SMA antenna
- Rubber stand (OnCell 5004-HSPA only)
- Wallmount kit (OnCell 5004-HSPA only)
- DIN-Rail kit (OnCell 5104-HSPA only)
- Documentation and software CD
- Quick installation guide (printed)
- Warranty card
Standards
GSM/GPRS/EDGE/UMTS/HSPA+
Band Options
Five band UMTS/HSPA+ 800/850/AWS/1900/2100 MHz
Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
HSPA+ Data Rate
14.4 Mbps DL, 5.76 Mbps UL
Number of WAN Ports
1
Ethernet
10/100 Mbps, RJ45 connector, Auto MDI/MDIX
Number of LAN Ports
4
Ethernet
10/100 Mbps, RJ45 connector, auto MDI/MDIX
Number of SIM Slots
2
Operating Temperature
Standard Models: -30 to 55°C (-22 to 131°F)
Wide Temp. Models: -30 to 70°C (-22 to 158°F)
Download datasheet for complete specs
OVERVIEW

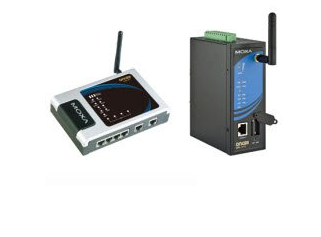

The OnCell 5004/5104-HSPA series are high-performance industrial grade cellular routers that allow up to 4 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. Both products provide the functionality of a cellular router, firewall, and switch in one device, and to ensure zero data loss and on-demand cellular communication, the OnCell 5004/5104-HSPA are integrated with the GuaranLink function. The difference between the OnCell 5004-HSPA and OnCell 5104-HSPA is that the OnCell 5104-HSPA comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field, and the two digital inputs allow you to connect basic I/O devices, such as sensors, to the cellular network. The OnCell 5004-HSPA can be placed on a desktop or wall-mounted, whereas the OnCell 5104-HSPA has an IA design and can be attached to a DIN-rail. Both products use 12 to 48 VDC power inputs with a screw-on design for greater reliability, and the Ethernet ports come with 1.5 KV magnetic isolation protection to keep your system safe from unexpected electrical discharge
