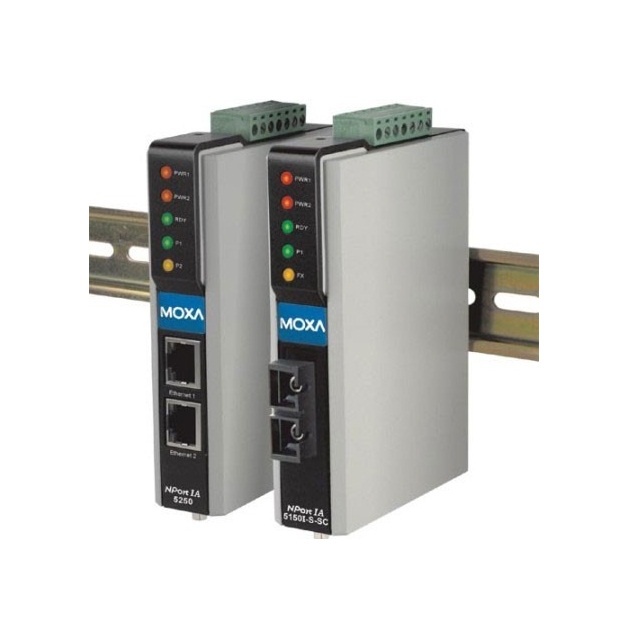

NPort IA5250-T 2-port device server, dual Ethernet ports

2-port device server, dual Ethernet ports, -40 to 75°C operation

Highlights

Versatile socket operation modes, including TCP Server, TCP Client, UDP
Patented ADDC (automatic data direction control) for 2-wire and 4-wire RS-485
Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
Redundant DC power inputs
Warning by relay output and e-mail
10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC connector)
IP30-rated housing

Description

Includes

1 x NPort IA5000 Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement

Number of Ports
2

Speed
10/100 Mbps, auto MDI/MDIX

Connector
8-pin RJ45

Fiber Port
100 BaseFX, SC connector

Min. TX Output
-20 dBm (Multi mode), -5 dBm (Single mode)

Max. TX Output
-14 dBm (Multi mode), 0 dBm (Single mode)

Sensitivity
-34 to -30 dBm (Multi mode), -36 to -32 dBm (Single mode)

Number of Ports
NPort IA5150 1
NPort IA5250 2

Serial Standards
RS-232/422/485

Connector
NPort IA5150 DB9 male for RS-232, terminal block for RS-422/485
NPort IA5250 DB9 male for RS-232/422/485

Operating Temperature
Standard Models 0 to 55°C (32 to 131°F)
Wide Temp. Models -40 to 75°C (-40 to 167°F)

Input Voltage
12 to 48 VDC

Overview

NPort IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP.

The rock-solid reliability of the NPort IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.
