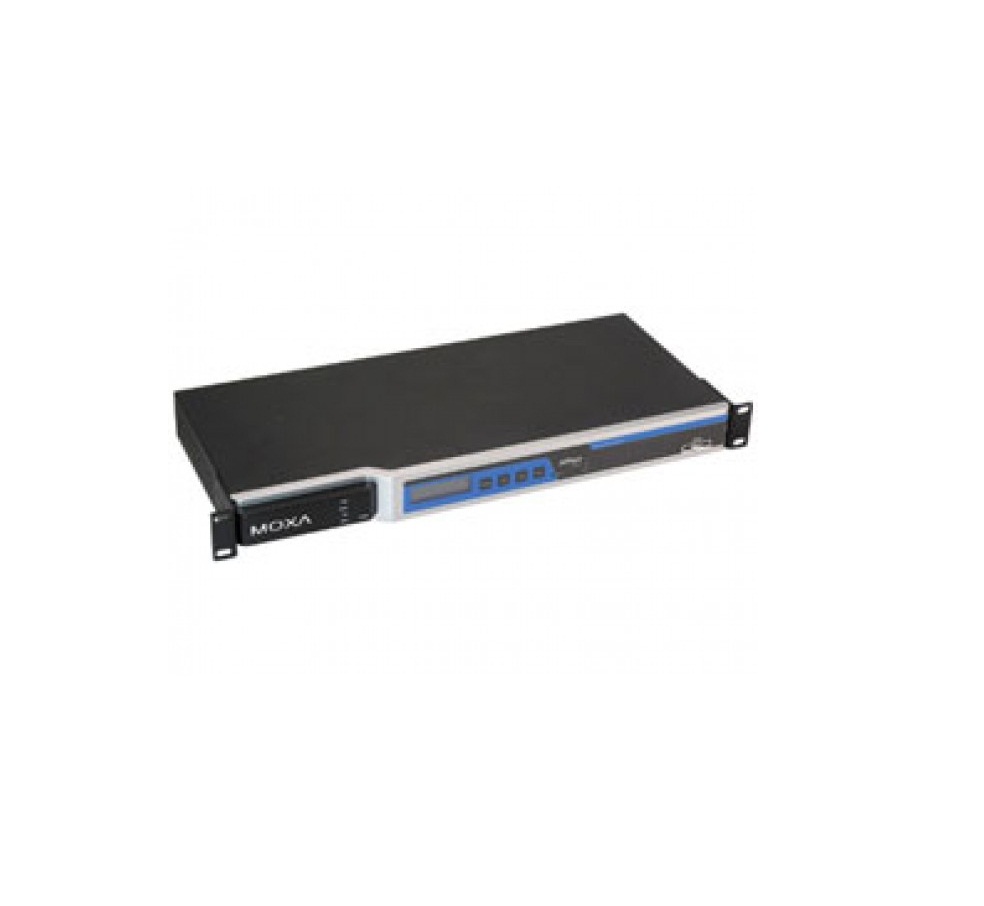

NPort 6650-16-T 16-port RS-232/422/485 to Ethernet secure terminal server

16-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C operating temperature, 100-240 VAC input

Highlights

Up to 32 ports for high density environments
Non-standard baudrates supported with high precision
Port buffers for storing serial data when the Ethernet is off-line
Supports IPv6
Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
Modular design for network expansion
Secure data transmission

Description

Includes

1 x NPort 6600 Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement
1 x CBL-RJ45M9-150 (8-pin RJ45 to DB9 male connection cable, 150 cm)
1 x power cord (AC models only)

Number of Ports
1

Speed
10/100 Mbps, auto MDI/MDIX

Fiber Port
100BaseFX, SC connector

Number of Ports
8, 16, or 32

Serial Standards
NPort 6610 RS-232
NPort 6650 RS-232/422/485

Connector
8-pin RJ45

Slot Type
SD socket (supports up to 1 GB)

Standard
Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled

Secure
Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH

Operating Temperature
0 to 55°C (32 to 131°F)

Input Voltage
AC Models 100 to 240 VAC
DC Models ±48 VDC (20 to 72 VDC, -20 to -72 VDC)

Overview

The NPort 6600 series of secure device servers is the right choice for applications that use large numbers of serial devices packed into a small space. If you’re worried about security, you can rest assured with the NPort 6600, since it supports DES, 3DES, and AES, the three most common standards for data encryption. Serial devices of any type can be connected to the NPort 6600, and each serial port on the NPort can be configured independently for RS-232, RS-422, or RS-485 transmission.
