Description
Includes
- 1 x NPort 5600 Rackmount Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 1 x power cord
Number of Ports
1
Speed
10/100 Mbps, auto MDI/MDIX
Connector
8-pin RJ45
Min. TX Output
-20 dBm (Multi mode), -5 dBm (Single mode)
Max. TX Output
-14 dBm (Multi mode), 0 dBm (Single mode)
Sensitivity
-34 to -30 dBm (Multi mode), -36 to -32 dBm (Single mode)
Number of Ports
8 or 16
Serial Standards
NPort 5610 RS-232
NPort 5630 RS-422/485
NPort 5650 RS-232/422/485
Connector
RJ45 (8 pins)
Operating Temparture
0 to 55°C (32 to 131°F)
Input Voltage
NPort 5610/5630/5650 100 to 240 VAC, 47 to 63 hz
NPort 5610-48V ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Overview
With the NPort 5600 rackmount series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort 5600 to connect up to 16 serial devices to an Ethernet network.

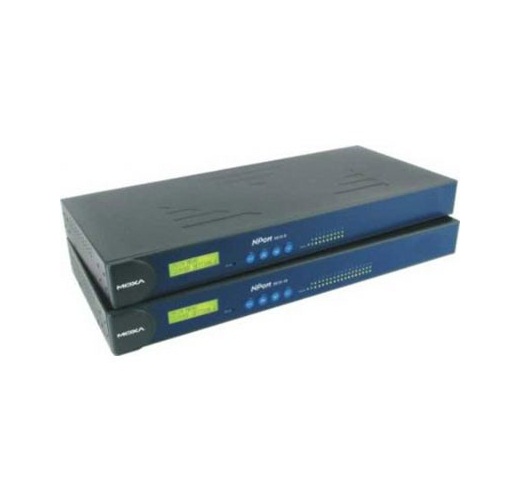

19-inch Rackmount Device Serve
NPort 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort 5600 device servers suitable for standard 19-inch rack mounting, allowing you to simplify operation, maintenance, and administrative tasks.
Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks, and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.
Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort 5600 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
