Description

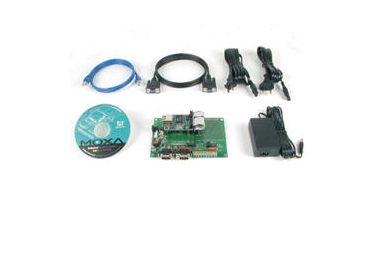

Includes
- 1 x NE-4100 Series evaluation board (module not included)
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 1 x universal power adaptor
- 2 x power cords
- 1 x null modem cable
- 1 x cross-over Ethernet cable
Type
NE-4110/4120 Ready-to-go stand-alone modules
NE-4100T 26-pin dual-in-line package
Number of Ports
1
Speed
10/100 Mbps, auto MDI/MDIX
Connector
NE-4110 Series RJ45
NE-4120 Series 5-pin pin header
NE-4100T 26-pin dual-in-line
Number of Ports
2
Serial Standards
Port 1
NE-4110S/4120S RS-232
NE-4110A/4120A RS-422, RS-485-4w, RS-485-2w
NE-4100T TTL
Port 2
TTL console port
Operation Modes
Real COM, TCP Server, TCP Client, UDP
Operating Temparture
Standard Models 0 to 55°C (32 to 131°F)
Wide Temp. Models -40 to 75°C (-40 to 167°F)
Input Voltage
5 VDC (±5%)
OVERVIEW
Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time.
The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.
