MiiNePort W1 Embedded wireless device module supporting IEEE 80

Embedded wireless device module supporting IEEE 802.11 b/g, 0 to 55°C operating temperature (internal antenna not included)

Highlights

  • IEEE 802.11 b/g compatible
  • AES, WEP 64/128-bit, WPA, WPA2, PSK, 802.11i security support
  • Low power consumption (1.18W)
  • 1 Serial port, up to 921.6K bps
  • 1 Ethernet port, 10/100Mbps
  • HTTPS/SSH support for configuration
  • Fast roaming to enhance connection reliability
Categories: , ,

Description

Includes

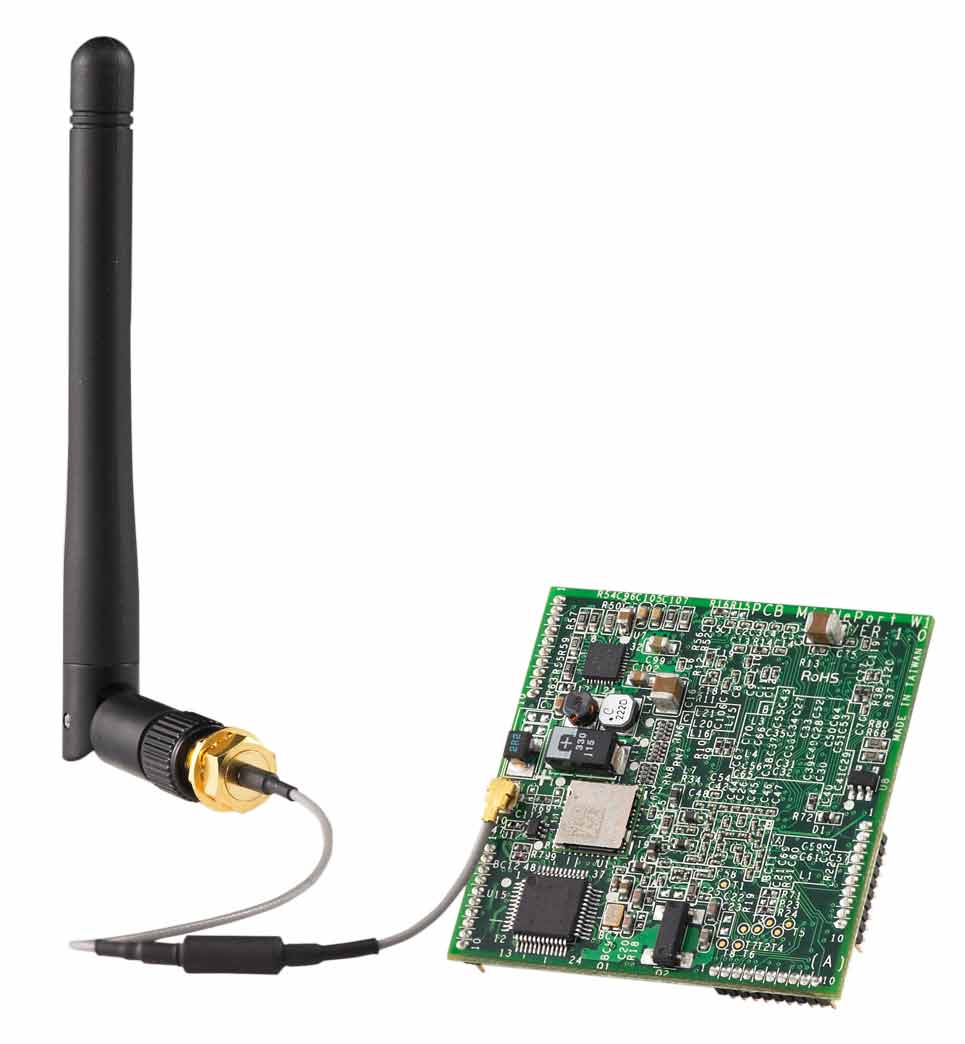

  • MiiNePort W1 series wireless module (Antenna ordered separately)

Type
Drop-in module

Dimensions
44.4 x 44.4 x 9.7 mm (1.75 x 1.75 x 0.38 in)

CPU
32-bit ARM Core

RAM
64 MB built in

Flash
16 MB built in

Number of Ethernet ports
1

Speed
10/100 Mbps, auto MDI/MDIX

WLAN
IEEE 802.11b/g

Number of serial ports
1

Serial Standards
TTL

OVERVIEW

The MiiNePort W1 series provides serial to IEEE 802.11 b/g embedded wireless solution with compact size, and ultra low power consumption features. Numerous operation modes are designed to fulfill the requirements of embedded module application. Complete driver support reduces software redesign effort and accelerate time to market.
