Description
Overview

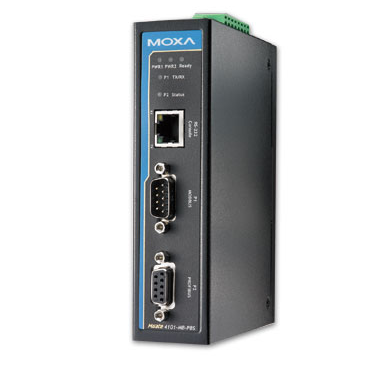

The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communication. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices.
| • PROFIBUS Interface | |
| Protocol | PROFIBUS DP-V1 Master |
| Number of Ports | 1 |
| Data Rate | 9600 bps to 12 Mbps |
| Connector | DB9 female |
| Isolation | 2KV (Built-in) |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 KV built-in |
| • Software | |
| Configuration Options | Serial Console, Windows Utility, Web (HTTP/HTTPS), Telnet/SSH |
| Utilities | MGate Manager for Windows 2000, Windows XP/2003/Vista/2008/7 x86/x64 |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | 500 g |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Terminal block |
| Power Consumption | 365 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11, EN 61000-4-12 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • Reliability | |
| MTBF (mean time between failures) | 540,026 hrs |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| • Modbus TCP | |
| Operation Modes | Modbus TCP Slave/Master |
