Description
• Device

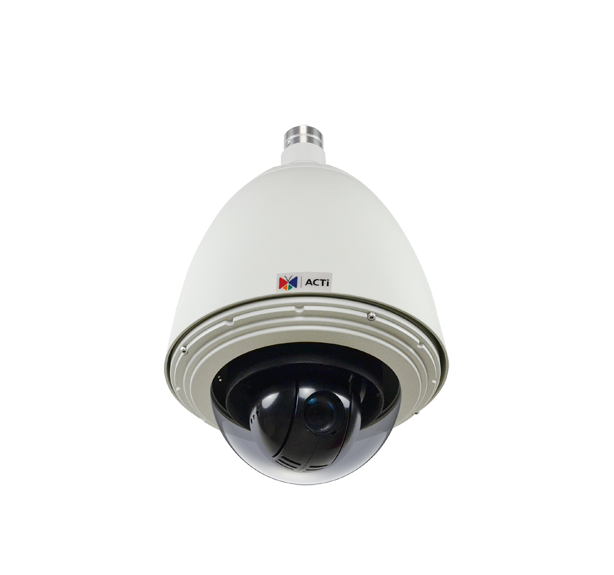

Device Type Outdoor PTZ Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8” (5.42 x 3.41 mm)
Day / Night Yes
Superior Low Light Sensitivity Yes
Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100 mm
IR LED No
Electronic Shutter 1/13 ~ 1/2,000 sec (50Hz); 1/15 ~ 1/2,000 sec (60Hz) (manual mode);
1/13 ~ 1/10,000 sec (50Hz); 1/15 ~ 1/10,000 sec (60Hz) (auto model)
• Lens
Focal Length Zoom, f4.7 – 84.6 mm / F1.6 – 2.8
Zoom Ratio 18x optical; 16x digital
Zoom Speed 2 sec (1x ~18x)
Iris DC iris
Focus Auto focus
Horizontal Viewing Angle 48.9° ~ 3.6°
• PTZ
Manual Panning Speed 0.5° ~ 90°/s
Manual Tilting Speed 0.5° ~ 90°/s
Preset Panning Speed 0.5° ~ 450°/s
Preset Tilting Speed 0.5° ~ 450°/s
Panning Range 350° (360° pan via Auto-flip)
Tilting Range 0°~180°
Control Remote manual control; 64 preset points; 10 preset tours
Preset Panning Accuracy 0.265°
Preset Tilting Accuracy 0.265°
Absolute Positon Yes
Protocol ACTi URL command, Sony Visca, Pelco D, Pelco P
• Video
Compression H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate
vs. Resolution (H.264, MJPEG) 15 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
Maximum Frame Rate
vs. Resolution (MPEG-4 SP) 11 fps at 1920 x 1080; 25 fps at 1280 x 720; 30 fps at 640 x 480
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Advanced WDR (80 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; 2D+3D Digital Noise Reduction; Flickerless; Defogging
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Audio
Audio 2-way
Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In 3.5mm phone jack
Audio-Out 3.5mm phone jack
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions); External device through digital input
Alarm Response Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices;
E-mail notification with snapshots; Upload video, Snapshot to FTP server; Activate external device through digital output
• Interface
Digital Input 2, cable without connector
Digital Output 2, cable without connector
• General
Power Source / Consumption High PoE (IEEE802.3at) / 33.6W (built-in heater and fan on)
DC 12V / 30W (built-in heater and fan on)
Weight 6700g (14.8 lb)
Dimensions (Φ x H) 275 mm x 454 mm (10.8″ x 17.9″)
Bundled Accessories Power adapter
Environmental Casing Weatherproof (IP66 rated); Vandal proof (IK10 rated)
Mount Type Pendant, Wall, Corner, Pole
Starting Temperature -30°C ~ 45°C (-22°F ~ 113°F)
Operating Temperature -40°C ~ 45°C (-40°F ~ 113°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
Adapter: CE, FCC, UL, PSE, Efficiency level V
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer
