Description
• Device

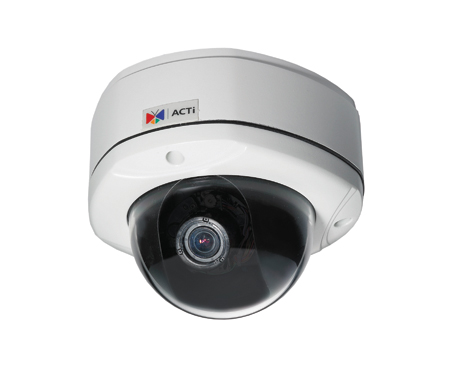

Device Type Fixed Outdoor Dome Camera
Image Sensor Aptina Progessive Scan CMOS
Sensor Size 1/3.2 “ (4.5 x 3.4 mm)
Horizontal Resolution 1422 TVL
Day / Night Yes
Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range No
IR LED No
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Zoom, f3.3 – 12 mm / F1.4 – 2.9
Zoom Ratio 3.6x optical
Iris P-Iris
Focus Auto Focus
Mount Type Board Mount
Horizontal Viewing Angle 77.2° – 22.6°
Viewing Angle Adjustment Pan: 0° – 350°; Tilt: 0° – 180°; Rotate: 0° – 350°
• Video
Compression H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate
vs. Resolution (H.264, MJPEG)
8 fps at 2032 X 1920; 15 fps at 1920 X 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
Maximum Frame Rate
vs. Resolution (MPEG-4 SP)
5 fps at 2032 X 1920; 11 fps at 1920 X 1080; 25 fps at 1280 x 720; 30 fps at 640 x 480
4 Cropped VGA Mode (All Compressions) 15 fps at 640 x 480 (VGA)
Multi-Streaming
Simultaneous dual streams based on two configurations in single view mode;
Multiple streams based on single configuration in 4 cropped VGA mode
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement
Advanced WDR; White balance: automatic, hold and manual; Brightness; Saturation; Contrast;
Sharpness; Automatic gain control; 2D+ 3D Digital noise reduction; Flickerless; Defogging
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Audio
Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In Terminal block
Audio-Out Terminal block
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger
Video motion detection 3 regions in single view mode,
1 region each in 4 cropped VGA mode; External device through digital input
Alarm Response
Notify control center; Go to Zoom preset point or preset tour; Change camera settings; Command other devices; E-mail notification with
snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
• Interface
Digital Input 2, terminal block
Digital Output 2, terminal block
Local Storage MicroSDHC memory card slot (card not included)
• General
Power Source / Consumption
PoE Class 3 (IEEE802.3af) / 12.24W
DC 12V /10.2W (adapter not included)
Weight 1200 g (2.65 lb)
Dimensions (Ø x H) 151.69 mm x 114.9 mm (5.97″ x 4.52″)
Environmental Casing Weatherproof (IP66 rated); Transparent vandal proof dome cover, up to 659.23 kgF (1453.35 lbF)
Mount Type Surface, Pendant, Wall, Corner, Pole, Flush
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F) within 30 minutes
Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A), IP66
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
