Description
• Device

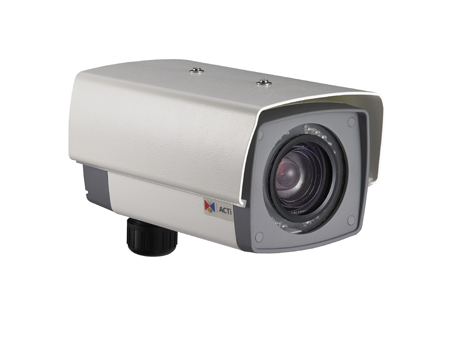

Device Type Box Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2″ (4.5 x 3.4 mm)
Day / Night Yes
Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100 nm
IR LED IR LED x 24 (850 nm)
IR Working Distance 20m (0 lux, 30 IRE, Max Exposure Gain)
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Zoom, f3.2 – 70.4 mm / F1.6 – 3.8
Zoom Ratio 22x optical
Iris DC Iris
Focus Auto Focus
Horizontal Viewing Angle 57.1° – 3.0°
• Video
Compression H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate
vs. Resolution (H.264,
MJPEG)
15 fps at 1920 X 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
Maximum Frame Rate
vs. Resolution (MPEG-4 SP) 11 fps at 1920 X 1080; 25 fps at 1280 x 720; 30 fps at 640 x 480
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Advanced WDR; White balance: automatic, hold and manual; Brightness; Saturation;
Contrast; Sharpness; Automatic gain control; 2D+3D Digital noise reduction; Flickerless; Defogging
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Audio
Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In 3.5mm Phone Jack
Audio-Out 3.5mm Phone Jack
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Pelco-D, Pelco P
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions); External device through digital input
Alarm Response
Notify control center; Go to Zoom preset point or preset tour; Change camera settings; Command other devices; E-mail notification
with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through
digital output
• Interface
Digital Input 2, terminal block
Digital Output 2, terminal block
Serial Port RS-485, RS-422, terminal block
Local Storage MicroSDHC memory card slot (card not included)
• General
Power Source / Consumption PoE Class 3 (IEEE802.3af) / 7.92W (IR on)
DC 12V / 9.8W (adapter not included)
Weight 1350 g (2.98 lb)
Dimensions (W x H x D) 115.20mm x 130.59mm x 195.00mm (4.50″ x 5.10″ x 7.70″)
Environmental Casing Weatherproof (IP66 rated)
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F) within 30 minutes
Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A), IP66
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
