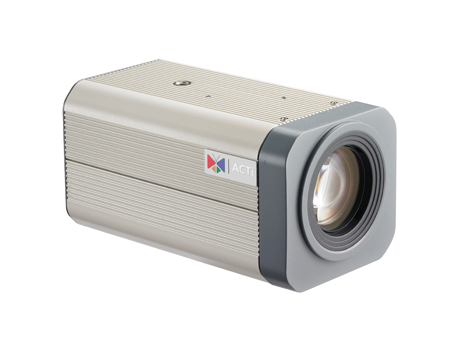

KCM-5211

Description

• Device
Device Type Box Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2″ (4.5 x 3.4 mm)
Horizontal Resolution 1409 TVL
Day / Night Yes
Minimum Illumination Color:0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100 nm
IR LED No
Electronic Shutter 1/25 – 1/2000 sec (50Hz); 1/15 – 1/2000 sec (60Hz) (manual mode)
1 – 1/2000 sec (auto mode)
• Lens
Focal Length / Aperture Zoom, f4.7 – 84.6 mm / F1.6 – F2.8
Zoom Ratio 18x optical
Zoom Speed 2.63 sec (1x to 18x)
Iris DC Iris
Focus Auto Focus
Horizontal Viewing Angle 48.9° – 3.6°
• Video
Compression H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate
vs. Resolution (H.264, MJPEG) 8 fps at 2032 X 1920; 15 fps at 1920 X 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
Maximum Frame Rate
vs. Resolution (MPEG-4 SP) 5 fps at 2032 X 1920; 11 fps at 1920 X 1080; 25 fps at 1280 x 720; 30 fps at 640 x 480
4 Cropped VGA Mode (All
Compressions) 15 fps at 640 x 480 (VGA)
Multi-Streaming Simultaneous dual steams based on two configurations in single view mode;
Multiple streams based on single configuration in 4 cropped VGA mode
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement White balance: automatic, hold and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Audio
Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In 3.5mm Phone Jack
Audio-Out 3.5mm Phone Jack
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Pelco-D, Pelco P
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection 3 regions in single view mode,
1 region each in 4 cropped VGA mode; External device through digital input
Alarm Response
Notify control center; Go to Zoom preset point or preset tour; Change camera settings; Command other devices;
E-mail notification with snapshots; Save video or snapshot to local storage;
Upload video, snapshot to FTP server; Activate external device through digital output
• Interface
Digital Input 2, terminal block
Digital Output 2, terminal block
Serial Port RS-485, RS-422, terminal block
Local Storage MicroSDHC memory card slot (card not included)
• General
Power Source / Consumption PoE Class 3 (IEEE802.3af) / 10.8W
DC 12V / 7.56W (adapter not included)
Weight 740 g (1.63 lb)
Dimensions (W x H x D) 76 mm x 71.4 mm x 138.7 mm (2.99″ x 2.81″ x 5.46″)
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A)
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
