Description
• Device

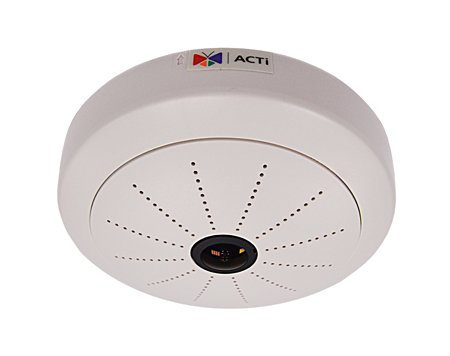

Device Type Hemispheric Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.5 “ (5.7 x 4.28 mm)
Day / Night Yes
Minimum Illumination Color: 1.63 lux at F2.8 (30 IRE, 2400°K); B/W: 0.06 lux at F2.8 (30 IRE, 2400°K)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100 nm
IR LED No
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Fisheye Lens, 1.05 mm / F2.8
Iris Fixed iris
Focus Fixed Focus
Horizontal Viewing Angle 180°
• Video
Compression H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate vs.
Resolution 6 fps at 2032 X 1920; 12 fps at 1920 X 1080; 12 fps at 1280 X 720; 12 fps at 640 X 480
Mode Fisheye View; Dewarped View: 180° / 360° Panorama, ePTZ, 6 VGA, Motion Detection Preset
Multi-Streaming Simultaneous dual steams based on two configurations in single view mode;
Multiple streams based on single configuration in 6 cropped VGA mode
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Advanced WDR; White balance: automatic, hold and manual; Brightness; Saturation; Contrast;
Edge enhancement; Automatic gain control; 2D+3D Digital noise reduction; Flickerless; Defogging
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
• Audio
Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In Cable with 3.5mm Phone Jack
Audio-Out Cable with 3.5mm Phone Jack
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP,
UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3-6 regions, depending on video mode); External device through digital input
Alarm Response
Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; Command other devices;
E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP
server; Activate external device through digital output
• Interface
Digital Input 2, terminal block
Digital Output 2, terminal block
Local Storage MicroSDHC memory card slot (card not included)
• General
Power Source / Consumption PoE Class 3 (IEEE 802.3af) / 9.6W
DC 12V / 7.68W ( adapter not included)
Weight 425 g (0.93 lb)
Dimensions (Ø x H) 150mm x 45.32mm (5.9″ x 1.8″)
Bundled Accessories Surface Mount Plate
Mount Type Surface (via mount plate only), Flush, Wall, Pendant, Pole, Corner
Starting Temperature -10 °C – 50°C (14°F – 122°F)
Operating Temperature -10 °C – 50°C (14°F – 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer
