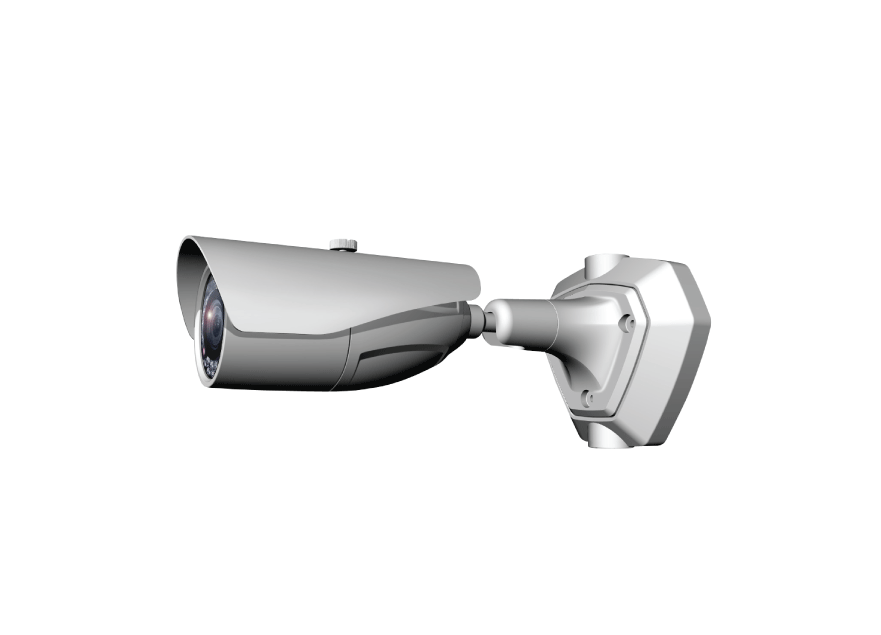

IRV-603P-36

• SONY 1/3” Interline Transter Type Color CCD
• 600 TVL High Resolution
• Filter Changeable Vari-Focal DC Auto Iris Lens
Built-in 2.8~11mm Lens (Horizontal Angle 28°~88°)
• Color & B/W Changing Time Selectable
• IR LED Day & Night Vision Camera
• Viewable Length at Night 30m (48pcs IR LED with 6~50mm available)
• DNR with TDN Lens
• CDS Auto Switching IR LED Control
• OSD Control with Wireless Remocon
• Viewing Angle & DC Level Easy Adjustment
• DC12V Source (AC/DC dual voltage optional)
• Cable Managed Bracket ( Pipe – Line Adaptor Optional)
• Waterproof (IP66)

Categories: ,

Description

  • Image Sensor : 1/3″ Interline Transter Type Color CCD (Sony)
  • Effective Pixels : 752H x 582V (440K pixels)
  • Scanning System : 625 Lines 2:1 Interlace
  • Scanning Frequency : 15.625KHz (H), 50Hz (V)
  • Resolution : 600TV Lines (Color), 700TV Lines (B/W)
  • Shutter Speed : 1/50~1/100,000sec
  • S/N Ratio : More than 48dB (AGC Off)
  • Sync. System : Internal
  • Min.Illumination : 0 Lux with IR-LED (36pcs, Effective range 30m)
  • Video Output : CVBS :1.0Vp-p (75 ohm Load)
  • Lens : Vari-Focal 2.8 ~ 11mm Lens (Horizontal Angle 28°~88°)
  • Power Supply : 12V DC( ±10%)
  • Power Consumption : Max 700mA
  • Operating Temp. : -10°C ~ +50°C
  • Operating Humidity : 90%RH max.
