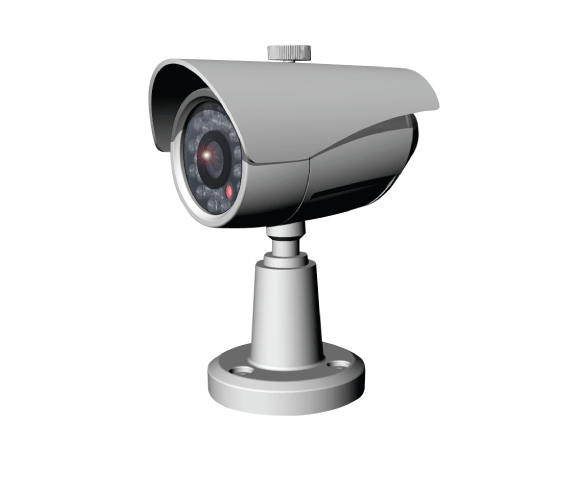

IRF-600P-30

Description

SPECIFICATIONS :

• Image Sensor : 1/3” Interline Transfer Type Color CCD (Sony)

• Effective Pixels : 752H*582V(440K Pixels)

• Scanning System : 625Lines 2:1 Interlace

• Scanning Frequency : 15.625KHz(H), 50Hz(V)

• Resolution : 600TVL

• Shutter Speed : Auto(1/50 ~ 1/100,000)sec

• S/N Ratio : More than 48dB(AGC Off)

• Sync. System : Internal

• Functions : White Balance: ATW1 (2,300 ~9,500°K)

Back Light Compensation: BLC On
DNR: On

• Min. Illumination : 0.2Lux @F2.0

• Lens : Std. f = 4mm

• Video Output : VBS 1.0Vp-p (75Ω Load)

• Power Supply(*) : DC12V±10%

• Power Consumption : Max 350mA

• Operating Temp. : -10
