Description
Includes
- 1 x ioPAC 8020 CPU Module with 5 empty I/O slots
- 1 x Software and Documentation CD-ROM
CPU
ARM9 based CPU, 32-bit/160 Mhz
Flash
4 MB
Program Cycle Time
100ms
SDRAM
8 MB
I/O Scan Time
100ms
LAN
2 auto-sensing 10/100 Mbps ports (M12 or RJ45)
Ethernet Relay Function
Hardware Normal Close
Input Voltage
12 to 36 VDC
Power Consumption
CPU Module: 90 mA @ 24 VDC
CPU + I/O Modules: 300 mA @ 24 VDC
OVERVIEW

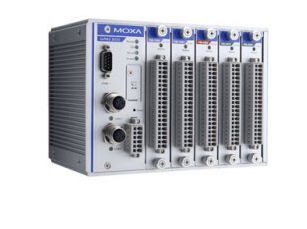

The ioPAC 8020 is designed for front-end data acquisition and monitoring applications. With a powerful processor and a variety of interfaces, the 8020 can connect to devices such as PLCs, smart meters, controllers, and other serial devices. In addition to the serial interface, the 8020 also supports hot-swappable I/O slots for sensor signals, allowing you to choose from a variety of I/O modules for accessing sensor signals.
The ioPAC 8020 is a DIN-Rail, fanless, modular RTU controller. The housing design for this product is optimized for robustness and compactness, and the aluminum chassis provides better protection for rolling stock, wayside, roadside, environmental monitoring, wind turbine, and other outdoor applications. In addition, the ultra wide temperature design is suitable for both tropical and high altitude environments. With two M12 Ethernet connectors, two serial ports with DB9 connectors, and a spring lock terminal block for I/O signal interfaces, the ioPAC 8020 is tailor-made for high vibration applications.
