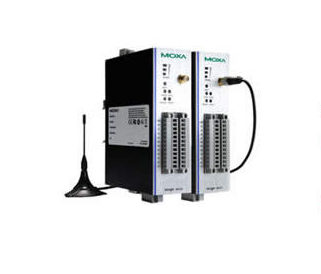

ioLogik W5312 Active GPRS I/O with 8 DIs, 4 DIOs, and 8 DOs

ioLogik W5312 Active GPRS I/O with 8 DIs, 4 DIOs, and 8 DOs

Highlights

Integrated, compact box solution for GPRS telemetry applications
Definable GPRS connective strategy to optimize data transmission
Intuitive menu driven front-end intelligence
Flexible, Unicode alarm system supporting SMS, email, SNMP Trap, TCP/UDP
One RS-232/422/485 serial port built-in to connect with field serial devices
Backup and sustainable data logging function
Seamless SCADA connectivity by Active OPC technology
Configuration, update firmware, programming over the air via ioAdmin
Windows/WinCE VB/ VC.NET and Linux C APIs

Description

Includes

1 x ioLogik W5300 Series unit
1 x support CD/DVD
1 x quad-band antenna (GSM/GPRS, omni-directional, 0 dBi, magnetic SMA, 3M)

Specs:

DI/DO Configurable Channels
Channels:4
I/O Mode:

DI or Event Counter (up to 900 Hz)
DO or Pulse Output (up to 100 Hz)

Digital Input
Channels: Up to 8, source/sink selectable
Sensor Type:NPN/PNP type

Digital Output
Channels:Up to 8, sink type, 36 VDC, 200 mA
I/O Mode:DO or Pulse Output (up to 100 Hz)

Power Consumption
GPRS Always On (Communication): 4.2 W
GPRS Off: 2.8 W
Power Input:24 VDC nominal, 12 to 36 VDC

Overview:

The ioLogik W5312 is a rugged, compact solution for remote monitoring and alarm systems. With the ioLogik W5312, you can define a GPRS connective strategy, including Always-On and Wake-On-Demand, to optimize data transfer rates for different applications. In addition, the operational cost of GPRS communication depends on the data transfer rate. With Moxa’s active technology, you can expect to cut transmission costs in half and offer different GPRS Cconnection strategies to achieve better data transfer fees. This rugged, compact solution is suitable for the following applications.
