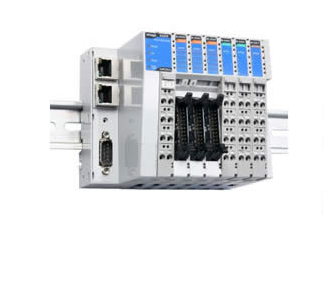

ioLogik E4200 Modular Active Ethernet I/O adaptor

Highlights

Supports up to 16 I/O modules
Dual Ethernet LANs and one RS-232 port
Front-end intelligence that supports 80 Click&Go rules
Unicode Active Messaging with real-time stamp, including SMS,
SNMP Trap with I/O status, TCP, email
Built-in web console
PC utility: Auto detection of installed modules
Windows/WinCE VB/VC.NET and Linux C AP

Description

Includes

1 x ioLogik E4200 unit
1 x support CD/DVD

Specs:

Ethernet
2 x 10/100 Mbps (2 MACs, 2 IPs, RJ45 connectors)

Protection
1.5 KV magnetic isolation

Protocols
Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, SNMP, SNMP Trap, HTTP, SNTP

Interface
1 x RS-232/485 (9-pin D-Sub, male)

Parameters
N, 8, 1

Baudrate
115,200 bps

Power Input
24 VDC nominal, 12 to 36 VDC

Current for I/O Modules
Max. 1.5A @ 5 VDC

Rated Voltage
11 to 28.8 VDC, 24 VDC typical

Current in Field Power Contact
Max. 10 A

System Power to I/O Driver
Optical isolation

Dimensions
45 x 99.8 x 70 mm

Overview:

The ioLogik E4200 is suitable for remote monitoring and alarm systems, such as are used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems.

These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik E4200.
