Description
Includes
- 1 x ioLogik E2200 Series unit
- 1 x support CD/DVD
Specs:
Ethernet
1 x 10/100 Mbps, RJ45
Protection
1.5 KV magnetic isolation
Protocols
Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, SNMP (MIB for I/O and Network), HTTP, CGI, SNTP
Interface
RS-485-2w Data+, Data-, GND
Serial Line Protection
15 KV ESD for all signals
Channels
8 analog inputs with differential input
Resolution
16 bits
I/O Mode
Voltage / Current
Input Range
±150 mV, ±500 mV, ±5 V, ±10 V, 0 to 20 mA, 4 to 20 mA
Data Format
16-bit integer (2’s complement)
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
Sampling Rate (all chann
els)
10 samples/sec for voltage
6 samples/sec for current
Input Impedance
900K ohms (min.)
Built-in Resistor for Current Input
106 ohms
CMR @ 50/60 Hz
95 dB min.
Zero Drift
±9 μV/°C
Span Drift
±25 ppm/°C
Isolation
3K VDC or 2K Vrms
Channels
2
Resolution
12 bits
Output Range
0 to 10 V, 4 to 20 mA
Drive Voltage
15 VDC for current output
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
Zero Drift
±9 μV/°C
Span Drift
±25 ppm/°C
Load Resistor
Less than 250 ohms
Overview:

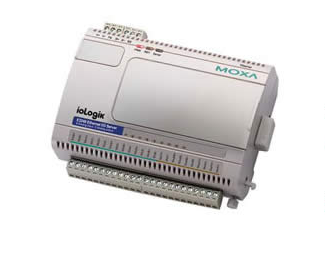

Combination of analog input and outputThe ioLogik E2240 comes with a combination of analog inputs andanalog outputs in one module, and supports a wide range of sensors andactuators, including pH, conductivity, pressure, flow, and valves.
