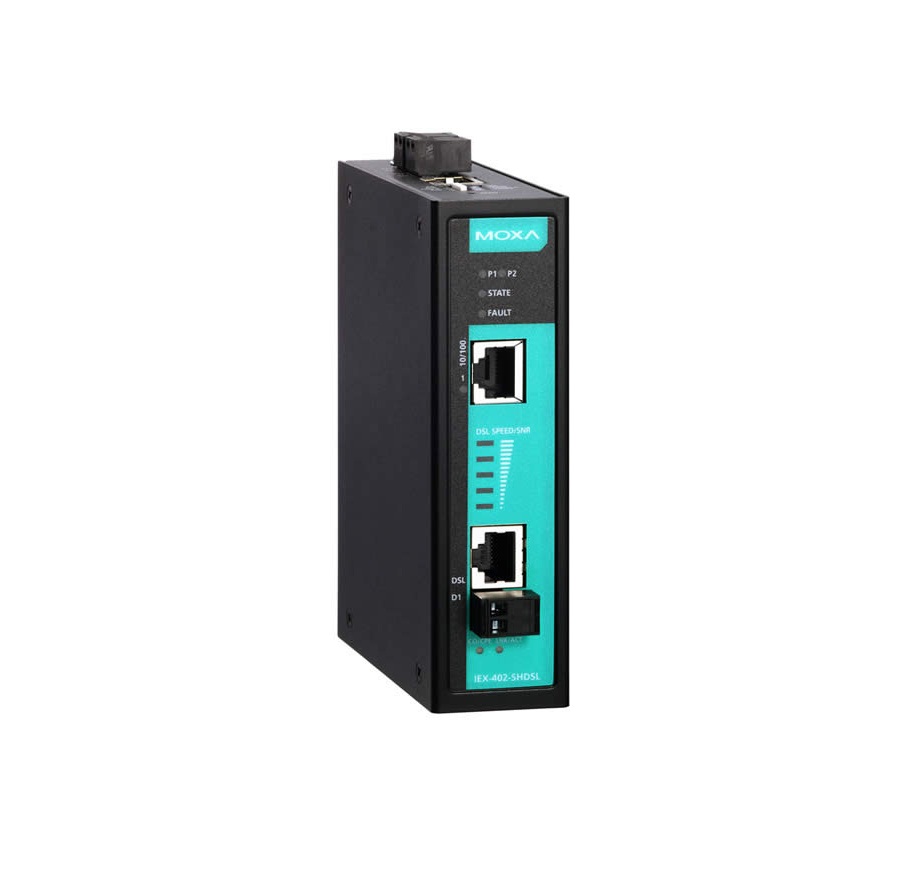

IEX-402-SHDSL- Managed Ethernet Extender

Managed SHDSL Ethernet extender with 1 10/100BaseT(x) port and 1 DSL port, -10 to 60C operating temperature

The IEX-402-SHDSL is an entry-level industrial managed Ethernet extender designed with one 10/100BaseT(X) and one DSL port. The Ethernet extender provides a point-to-point extension over twisted copper wires based on the G.SHDSL.bis standard. The device supports a data rate of up to 15.3 Mbps and a long transmission distance of up to 8 km.

The IEX-402-SHDSL series is designed for use in harsh operating environments. The DIN-rail mount, wide operating temperature range (-10 to 60C), and dual power input make it ideal for installation in industrial applications.
To simplify configuration, the IEX-402-SHDSL uses CO/CPE auto negotiation. By factory default, the device will automatically assign CPE status to one of each pair of IEX devices. In addition, Link Fault Pass-through (LFP) and network redundancy interoperability enhance the reliability and accessibility of communication networks. Advanced managed and monitored functionality through MXview, including a virtual panel, improve the user experience for quick trouble shooting.

Description

Highlights

Automatic CO/CPE negotiation reduces configuration time
Standard G.SHDSL data rate up to 5.7 Mbps, with up to 8km transmission distance (performance varies by cable quality)
Moxa proprietary Turbo Speed connections up to 15.3 Mbps
Supports Link Fault Pass-Through(LFP) and Line-swap fast recovery
Supports SNMP v1/v2c/v3 for different levels of network management
Interoperable with Turbo Ring/Turbo Chain network redundancy
Support Modbus/TCP protocol for device management and monitoring
Compatible with EtherNet/IP and PROFINET protocols for transparent transmission
Easy network management through web browser, Telnet/Serial console, Windows utility, MXview, and ABC-01
IPv6 Ready

Includes

IEX-402 DSL Ethernet Extender
RJ45 to DB9 console port cable
Documentation and software CD
Hardware installation guide (printed)
Warranty card

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1p for Class of Service
ITU-T G.991.2 for Single-pair high-speed digital subscriber line
(G.SHDSL) transceivers

DSL Port
DSL Port: RJ-11(RJ-45 connector) or detachable 2-contact terminal block
RJ45 Ports
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Console Port
RS-232 (RJ45 connector)
Input Voltage
12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs
Power Connection
2 removable 2-contact terminal block
Operating Temperature
Standard Models: -10 to 60C (14 to 140F)
Wide Temp. Models: -40 to 75C (-40 to 167F)
