Description
Includes
- 1 x IA261-I/262-I Series unit
- 1 x support CD/DVD
- 1 x installation guide
- 1 x warranty statement
- 1 x wall mounting kit
- 1 x DIN-rail mounting kit
- 1 x Ethernet cable (RJ45 to RJ45 cross-over cable, 100 cm)
- 1 x CBL-RJ45F9-150 (8-pin RJ45 to DB9 female console port cable, 150 cm)
- 1 x CBL-RJ45M9-150 (8-pin RJ45 to DB9 male serial port cable, 150 cm)
- 1 x universal power adaptor
Specs:
CPU
Cirrus EP9315 ARM9 CPU, 200 MHz
OS (pre-installed)
Windows CE 6.0 or Linux
DRAM
128 MB onboard (optional 256 MB)
Flash
32 MB onboard
USB
USB hosts x 2, compliant with USB 2.0 (OHCI) type A connectors
Storage Expansion
CompactFlash slot
LAN
2 auto-sensing 10/100 Mbps ports (RJ45)
Serial Standards
2 or 4 RS-232/422/485 ports, software-selectable (DB9 male)
Interface
Dual optically isolated CAN2.0A/2.0B compliant ports
CAN Controller
Phillips SJA1000T
Signals
CAN-H, CAN-L
Protocols
Supports CANOpen library
Isolation
2 KV digital isolation
Speed
10 Kbps to 1 Mbps
Connector Type
DB9 male
Operating Temperature
Standard Models -10 to 60°C (14 to 140°F)
Wide Temp. Models -40 to 75°C (-40 to 167°F)
Input Voltage
Redundant power input design
PWR1 12 to 48 VDC (3-pin terminal block)
PWR2 12 to 48 VDC (power jack with thread)
Overview:

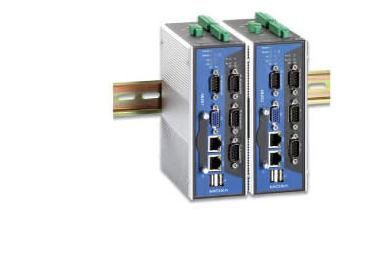

The IA261-I/262-I embedded computers come with 2 (IA262-I) or 4 (IA261) RS-232/422/485 serial ports, dual CANbus ports (IA262-I only), dual Ethernet ports, 8 digital input channels, 8 digital output channels, VGA output, 2 USB hosts, and a CompactFlash socket. The computers are housed in a compact, IP40 protected, industrial-strength aluminum case.
The IA261-I/262-I computers use the Cirrus Logic EP9315 ARM9, 32-bit, 200 MHz RISC CPU. This powerful computing engine supports several useful communication functions, but will not generate too much heat. The built-in 32 MB NOR Flash ROM and 128 MB SDRAM provide enough memory to run your application software directly on the IA261-I/262-I.
With its built-in VGA output interface, the IA261-I/262-I are suitable for use with SCADA systems in industrial applications, such as manufacturing automation, production line process monitoring, and mining automation, that require VGA and HMI features.
The IA261-I/262-I computers support RS-232/422/485, CANbus, digital I/O, come with 2 KV isolation protection, and have dual LAN ports, making them ideal as communication platforms for industrial applications that require network redundancy. In addition to the standard models, wide temperature (-40 to 75°C) models are available for use in harsh industrial automation environments.
The IA261-I/262-I computers come with Windows CE 6.0 pre-installed, and support general Windows and .NET 2.0 computing environments. This means that programs developed for standard PC operating systems with tools such Embedded Visual C++ or Visual Studio 2005 can run on the IA261-I/262-I without much porting effort.
