Description
Features:
• 3D De-interlace
Live stream video is enhanced by the 3D De-interlace function, providing high quality images.
• H.264 Video Compression
GKB R807 features advanced H.264 video compression for superior video resolution. The high compression ratio of H.264 consumes less HDD space than MPEG-4 video.
• 3G/GPRS Mobile Phone Surveillance
GKB R807 provides remote surveillance with 3G/GPRS mobile phone or PDA phone, without additional software.
Alternate Views
• Full D1 Resolution
GKB R807 provides full D1 resolution for record or playback. This provides the user with a wide choice of image quality. Real time live display also available for all cameras.
• Hyper Interactive E-Map
GKB R807 features a Hyper E-map function, allowing users to customize E-map and E-map objects to fulfill customized needs. It provides multi-task managerial functions through unlimited E-map layers.
• Smart Detection Zone Search
GKB R807 allows users to specify a certain region of the camera video. If any event that is recorded is found with motion in this region, the event will be listed. This helps locate events of interest very efficiently.
|

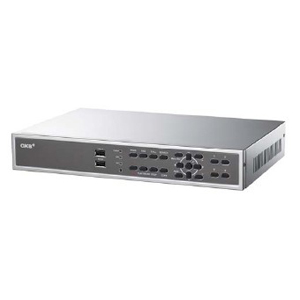

GKB R807 Digital Video Recorder |
|
|
|
|
|
|
|
|
|
|
|
|
System |
Embedded Linux |
|
|
|
|
|
|
|
|
|
|
Mode |
Multiplex – Live, Record, Network, Backup, |
Remote |
|
|
|
access, Control, Play back |
|
||
|
|
|
|
||
|
System |
Video Channel |
8 |
|
|
|
|
|
|||
|
Video Output |
BNC x 1,VGA x 1 |
|
|
|
|
|
|
|
||
|
|
Audio |
2 RCA Input / 1 RCA Output |
|
|
|
|
|
|
|
|
|
|
Alarm Input |
4 Input |
|
|
|
|
Alarm Output |
1 Output |
|
|
|
|
Compression |
H.264 |
|
|
|
|
Display Resolution |
NTSC:720×480 |
PAL:720×576 |
|
|
|
Record |
NTSC:60fps/D1, 120fps/Half D1, 240fps/CIF |
|
|
|
|
PAL: 50fps/D1, 100fps/Half D1, 240fps/CIF |
|
||
|
|
|
|
||
|
Video |
Recording Mode |
continual Schedule/Motion/Alarm |
|
|
|
Display Division |
1,4,8 Sequential |
|
|
|
|
|
|
|
||
|
|
Playback Mode |
Smart Search, |
Date/time, Camera ,Alarm, |
Motion, |
|
|
Video Loss |
|
|
|
|
|
|
|
|
|
|
|
Playback Operation |
Play, Fast Forward, Backward, Pause, Stop, Slow |
||
|
|
||||
|
|
Digital Zoom |
2x ,4x |
|
|
|
|
Software |
CMS, IE Browser |
|
|
|
|
Network Interface |
1 RJ-45 10/100Mbps |
|
|
|
Network |
Protocol |
TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP,TSP |
|
|
|
Audio |
2 Way |
|
|
|
|
|
|
|
||
|
|
Remote User |
6 Max |
|
|
|
|
Management |
10 DVRs |
|
|
|
Control/ Management |
Operation Interface |
Mouse / Key Pad / Remote Controller (included) |
||
|
|
|
|
||
|
|
PTZ / e-MAP/ GPS system / POS |
Yes ( POS needs RS-485 to RS-232 converter, not |
||
|
|
included) |
|
|
|
|
|
|
|
|
|
|
|
RS-485 |
Yes |
|
|
|
|
|
|
|
|
|
|
Internal Storage |
3.5” SATA HDD x 1 ,2TB Max |
|
|
|
Storage/Backup |
USB |
1 USB port support DVD+RW, DVD+R, DVD-R, |
|
|
|
|
Card readers, HDD.1 USB port for mouse |
|
||
|
|
|
|
||
|
Dimension / Weight |
320(W) x 210(D) x 50 (H)mm / 2.0 KG(without HDD) |
|
|
|
|
|
|
|
|
|
|
Power |
Power Supply |
DC 12V |
|
|
|
|
|
|
|
|
|
Power Consumption |
24W Max |
|
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
|
|
|
Temperature |
0oC ~ +45oC (Operation) |
|
|
|
