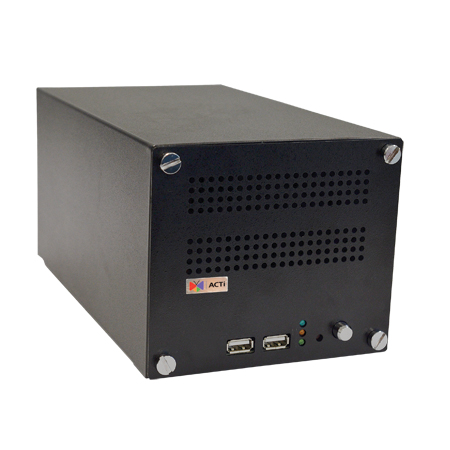

ENR-1200

Description

• General
Full Name ACTi Standalone Network Video Recorder ENR-1200
Maximum Number of Clients 1 local, 2 remote
Maximum Number of Cameras 16
Video Compression H.264
Audio Compression PCM, G.711 a-law/u-law (Only support local recording and remote live view/playback, not support local live view/playback)
Maximum display resolution Up to 2-Megapixel (Local display), Up to 5-Megapixel (Remote display)
• Live View
Display Layout Mode 1,2,4,6,9,10,12,13,16
Layout Tour (Auto Patrol) Automatic switch between different display layouts
Digital Panel Zoom in digitally by mouse
Event status Display status for network/record/motion/DI upon every video region
Live View Performance The live view frame rate may vary between 1fps and 30fps, depending on the number of channels and camera resolution
• PTZ
Control Pan, tilt and zoom controls; speed control
Preset Points and Tours Go/set preset points
Number of Preset Points 32
Default Protocol URL command
• Recording
Scheduled Recording Record video with user defined schedule
Event Recording Record video when the alarm event is triggered, including the pre-event buffered video clip
Event Speed-up Recording Record I frame only in normal status, and record full frames when the alarm event is triggered
Manual Recording Instant recording upon mouse click
Recording Frame Rate Max 480 fps total; Max 30 fps per camera
Maximum Recording Throughput 40 Mbps
• Storage
Interface Serial ATA
Maximum HDD Capacity 4T x 2
HDD Bay Maximum 2 disks (disks not included)
• Search & Playback
Time Based Video Search Search video recordings by time, channel or bookmark
Event Based Video Search Search event triggered video recordings
Playback Control Forward and backward playback with speeds 1/2x-1x-32x; pause; stop
Synchronized Playback 16 channels
Manual Snapshot Create snapshot from playback for export
Video Cropping Crop a short video clip from long recording file and save it as an independent file; video clip length:(1-30mins)
Video Export Export video clips in AVI/RAW format via USB storage
• Event Management
Event Trigger Video motion detection; External device through digital input; Network loss and recovery
Event Response Record video; Play alert beep; Activate external device through digital output;
E-mail notification with snapshots; Event logging; Go to PTZ preset point; Pop-up instant playback
• System
FW Upgrade FW Upgrade via USB mass storage
Configuration backup/restore Configuration backup/restore via USB mass storage
Permission Control Multi-group/users, liveview/playback/setup/remote level permission
Data Backup USB mass storage
Operating System Embedded Linux
System Status Monitor Real time status reports on remote browser
Language Multi-language support
• Remote Access
PC Web Browser Microsoft Internet Explorer 8.0 or 9.0
• Hardware
Dimensions (W x H x D) 135 mm x 121 mm x 241 mm ( 5.3″ x 4.8″ x 9.5″)
Weight 1.32kg (2.93 lb) without HDD
Operating Temperature 0°C~ 40°C(32°F ~ 104°F)
Operating Humidity 10% ~ 85% RH
Power Source / Consumption DC 12V / 50W
Bundled Accessories Warranty Card / QIG / Power Adapter (100~240V) / Mouse / Universal Converter
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) Adapter: CE, FCC, UL, PSE, Efficiency Level V
USB USB 2.0, 2 ports
Ethernet Port 2, Ethernet (1000 Base-T), RJ-45 connector, Built-in DHCP server support on Ethernet Port 1
Display port HDMI
• Integration
Unified Solution Fully compatible with ACTi camera with H.264 compression
