ENR-110

Description

• General

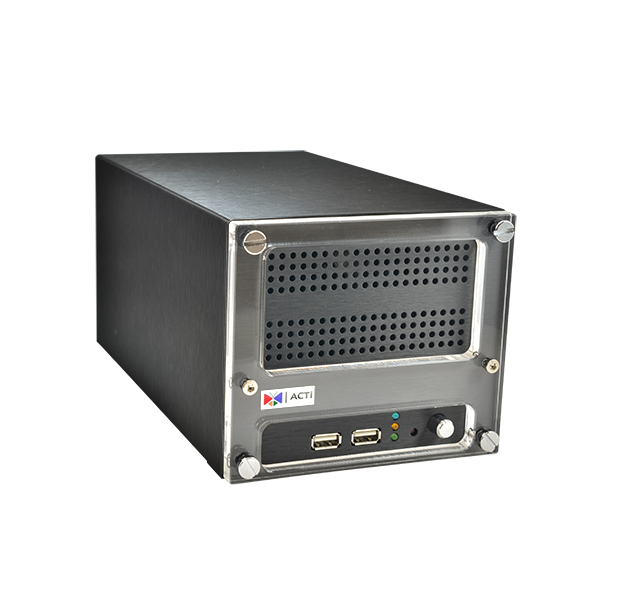

Full Name ACTi Standalone Network Video Recorder ENR-110
Maximum Number of Clients 1 local, 2 remote
Maximum Number of Cameras 4
Video Compression H.264
Audio Compression PCM, G.711 a-law/u-law (Only support local recording and remote live view/playback, not support local live view/playback)
Maximum Camera Resolution Up to 4-Megapixel (local display), Up to 10-Megapixel (remote display)
• Live View
Display Layout Mode 1, 2, 4
Layout Tour (Auto Patrol) Automatic switch between different display layouts
Digital Zoom Zoom in digitally by mouse
Event Status Display status for network/record/motion/DI/video loss upon every video region
Dual Stream Management Live view of stream 1 or stream 2 of dual stream devices
• PTZ
Control Pan, tilt and zoom controls; speed control
Preset Points and Tours Go/set preset points
Number of Preset Points 32
Joystick USB based joystick supported
Default Protocol URL command
• Recording
Scheduled Recording Record video with user defined schedule
Event Recording Record video when the alarm event is triggered, including the pre-event buffered video clip
Event Speed-up Recording Record I frame only in normal status, and record full frames when the alarm event is triggered
Manual Recording Instant recording upon mouse click
Recording Frame Rate Max 120 fps in total; Max 30 fps per camera
Maximum Recording Throughput 16 Mbps
Dual Stream Management Recording of stream 1 or stream 2 of dual stream devices
• Storage
Interface Serial ATA
Maximum HDD Capacity 4T x 2
HDD Bay Maximum 2 disks Maximum 2 disks (options to have empty bays or one 1TB storage disk included)
• Search & Playback
Time Based Video Search Search video recordings by time, channel or bookmark
Event Based Video Search Search event triggered video recordings, event response video loss
Playback Control Forward and backward playback with speeds 1/2x-1x-32x; pause; stop
Synchronized Playback 4 channels
Manual Snapshot Create snapshot from playback for export
Video Cropping Crop a short video clip from long recording file and save it as an independent file; video clip length:(1-30mins)
Video Export Export video clips in AVI/RAW format
• Event Management
Event Trigger Video motion detection; External device through digital input; Network loss and recovery
Event Response Record video; Play alert beep; Activate external device through camera digital output; E-mail notification with snapshots; Enlarge; video loss; Go to PTZ preset point
• System
Permission Control Multi-group/users, liveview/playback/setup/remote level permission
Operating System Embedded Linux
System Status Monitor Real time status reports on remote browser
Language Multi-language support
• Remote Access
PC Web Browser Microsoft Internet Explorer 9, 10 or 11
Remote Client PC System Requirement Intel Core 2 Quad 2.66 GHz, 32/64-bit, 4GB RAM
Mobile Client Program Mobile device application (ACTi Mobile Client) supports live view, PTZ control, event or time based search and playback
Supported devices: iPhone, iPad, iTouch and Android device
• Hardware
Dimensions (W x H x D) 135 mm x 121 mm x 251 mm ( 5.3″ x 4.8″ x 9.9″)
Weight 1.32 kg
Operating Temperature 0°C~ 40°C (32°F ~ 104°F)
Operating Humidity 10% ~ 85% RH
Power Source / Consumption DC 12V/ 22W
Bundled Accessories Warranty Card / QIG / Power Adapter (100~240V) / Mouse / Universal Converter/HDD screw x 8
Approvals ENR-110: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); Adapter: CE, FCC, UL, PSE, Efficiency Level V
USB USB 2.0, 2 ports (USB 1.1 not supported)
Ethernet Port LAN1: 1000Base-T ; LAN2: 10/100Base-T (WAN port)
Display Port HDMI
• Integration
Unified Solution Fully compatible with ACTi cameras, encoders and CMS V2.0
Open Platform Solution Support ONVIF compliant devices
