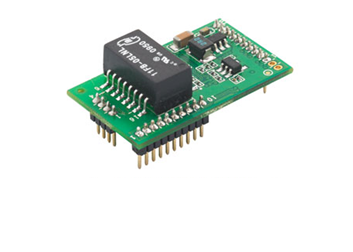

Embedded device server for TTL devices (drop-in module)

Description

Includes

• 1 x MiiNePort E2 Series unit

Type
Drop-in module

Dimensions
29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in)

Weight
5 g

CPU
32-bit ARM Core

RAM
4 MB built in

Flash
2 MB built in

No. of Ports
1

Speed
10/100 Mbps, auto MDI/MDIX

OVERVIEW

Moxa’s MiiNePort E2 series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E2 is empowered by the MiiNe, Moxas second generation SoC, which supports 10/100 Mbps Ethernet, up to 921.6 Kbps serial baudrate, a versatile selection of ready-to-use operation modes, and requires only a small amount of power. By using Moxas innovative NetEZ technology, the MiiNePort E2 can be used to convert any device with a standard serial interface to an Ethernet enabled device in no time. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.

The MiiNe”Moxa’s 2nd Generation SoC

The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E2, which uses the MiiNe for its SoC, is one of the worlds tiniest embedded device servers, and has the lowest power consumption of any similar product. The MiiNe has the following features:

– Designed for serial-to-Ethernet applications
– Uses an ARM core
– Uses Moxa’s own advanced UART technology
– 2 MB Flash and 4 MB SDRAM memory built in
