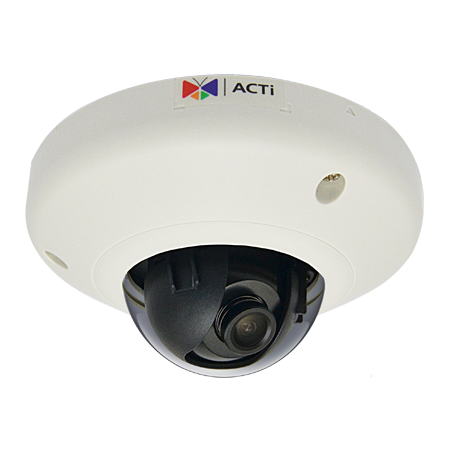

E91

Description

• Device
Device Type Fixed Indoor Dome Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/4″
Day / Night No
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400°K)
Mechanical IR Cut Filter No
IR Sensitivity Range No
IR LED No
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Fixed focal, f2.93 mm / F2.0
Iris Fixed iris
Focus Fixed focus
Lens Mount Board Mount
Horizontal Viewing Angle 72.0°
Viewing Angle Adjustment Pan: ±90°; Tilt: 0°- 90°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate vs.
Resolution 30 fps at 1280 x 720; 30 fps at 640 x 480;
Multi-Streaming Simultaneous dual steams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Basic WDR; White balance: automatic, hold, and manual; Brightness;
Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption;
Password protected user levels; Anonymous login; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots;
Save video or snapshot to local storage; Upload video, snapshot to FTP
• Interface
Local Storage MicroSDHC memory card slot (card not included)
• General
Power Source /
Consumption PoE Class 1 (IEEE802.3af) / 2.43W
Weight 201 g (0.443 lb)
Dimensions (Ø x H) 110 mm x 58 mm (4.3” x 2.3“)
Environmental Casing Vandal Resistant (IK08); Transparent dome cover
Mount Type Surface
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK08
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality);
Other browsers with VLC installed (partial functionality)
