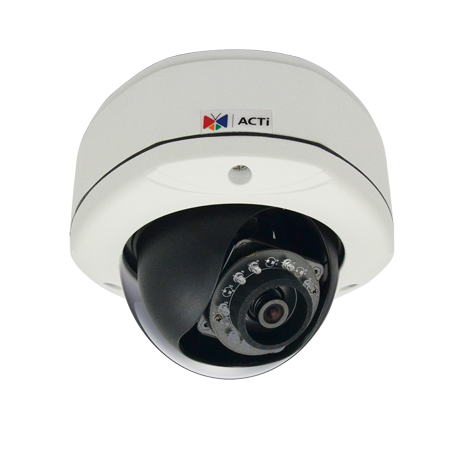

E72

Description

• Device
Device Type Outdoor Dome Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2″
Day / Night Yes
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700~1100nm
IR LED IR LED x 10 (850nm)
IR Working Distance 15 m (0 lux, 30 IRE, Max exposure gain)
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Fixed focal, f2.93 mm / F2.0
Iris Fixed iris
Focus Fixed focus
Mount Type Board Mount
Horizontal Viewing Angle 83.3°
Viewing Angle Adjustment Pan: 0° – 350°; Tilt: 17° – 163°; Rotate: 0° – 350°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate vs.
Resolution 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
Multi-Streaming Simultaneous dual steams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Basic WDR; White balance: automatic, hold, and manual;Brightness;
Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels;
Anonymous login; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots;
Save video or snapshot to local storage; Upload video, snapshot to FTP
• Interface
Local Storage MicroSDHC memory card slot (card not included)
• General
Power Source /
Consumption PoE Class 2 (IEEE802.3af) / 4.54W (IR on)
Weight 975 g (2.15 lb)
Dimensions (Ø x H) 150.76 mm x 116.9 mm (6″ x 4.6″)
Environmental Casing Weatherproof (IP66 rated); Vandal proof(IK10 rated); Transparent dome cover

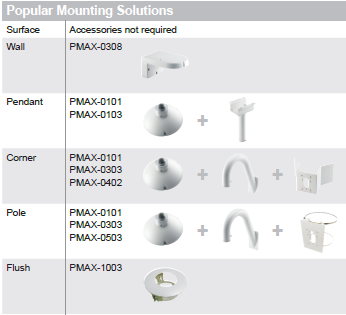

Mount Type Surface, Pendant, Wall, Corner, Pole, Flush
Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality);
Other browsers with VLC installed (partial functionality)
