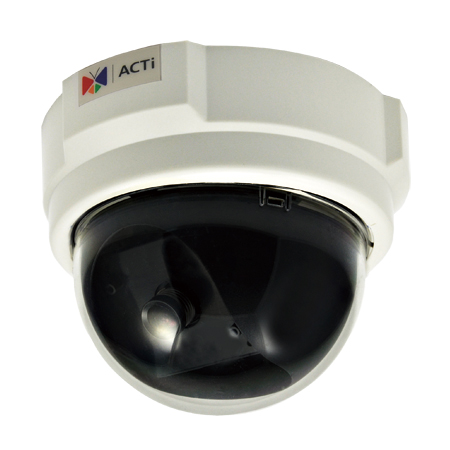

E51

Description

• Device
Device Type Fixed Indoor Dome Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/4″
Day / Night No
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400°K)
Mechanical IR Cut Filter No
IR Sensitivity Range No
IR LED No
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Fixed focal, f2.8 mm / F2.0
Iris Fixed iris
Focus Fixed focus
Lens Mount Board Mount
Horizontal Viewing Angle 77.5°
Viewing Angle Adjustment Pan: 0° – 330°; Tilt: 0° – 180°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate vs.
Resolution 30 fps at 1280 x 720; 30 fps at 640 x 480
Multi-Streaming Simultaneous dual steams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Basic WDR; White balance: automatic, hold, and manual; Brightness;
Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPs encryption; Password protected user levels;
Anonymous login; IEEE802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response Notify control Center; Change camera settings;
Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
• General
Power Source /
Consumption PoE Class 2 (IEEE802.3af) / 3.79 W
Weight 292 g (0.64 lb)
Dimensions (Ø x H) 128 mm x 99 mm (5.12” x 3.90“)
Mount Type Surface, Pendant, Wall, Corner, Pole, Flush
Starting Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality);
Other browsers with VLC installed (partial functionality)
