E44

Description

• Device
Device Type Bullet Camera
Image Sensor Progressive Scan CMOS with Superior Low Light Sensitivity
Sensor Size 1/2.8″
Day / Night Yes
Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700~1100nm
IR LED IR LED x 15 (850 nm)
IR Working Distance 15 m (0 lux, 30 IRE, Max exposure gain)
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Vari-focal, f2.8 – 12 mm / F1.4
Iris Fixed iris
Focus Manual focus
Mount Type Board Mount
Horizontal Viewing Angle 92.5˚~35.9˚
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate vs.
Resolution 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30fps at 640 x 480
Multi-Streaming Simultaneous dual steams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Basic WDR; White balance: automatic, hold, and manual; Brightness;
Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

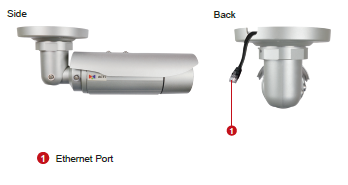

Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels;
Anonymous login; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response Notify control center; Change camera settings; Command other devices;
E-mail notification with snapshots; Upload video, snapshot to FTP server
• General
Power Source /
Consumption PoE Class 2 (IEEE802.3af) / 4.75 W (IR on)
Weight 651g (1.44 lb)
Dimensions (Ø x L) 66 mm x 291 mm (2.6″ x 11.5″)
Bundled Accessories Weatherproof Connector Kit
Environmental Casing Weatherproof (IP66 rated)
Mount Type Wall, Ceiling
Starting Temperature -20 °C ~ 50 °C (-4 °F ~ 122 °F)
Operating Temperature -40 °C ~ 50 °C (-40 °F ~ 122 °F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality);
Other browsers with VLC installed (partial functionality
