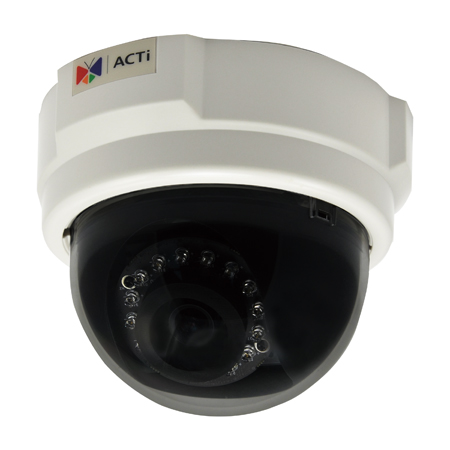

D54

Description

• Device
Device Type Fixed Indoor Dome Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/4″
Day / Night Yes
Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700~1100nm
IR LED IR LED x 10 (850nm)
IR Working Distance 15 m (0 lux, 30 IRE, Max exposure gain)
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Fixed focal, f3.6 mm / F1.8
Iris Fixed iris
Focus Fixed focus
Lens Mount Board Mount
Horizontal Viewing Angle 60.6°
Viewing Angle Adjustment Pan: 0° – 330°; Tilt: 20° – 90°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate vs.
Resolution 30 fps at 1280 x 720; 30 fps at 640 x 480;
Multi-Streaming Simultaneous dual steams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement White balance: automatic, hold, and manual; Brightness;
Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPs encryption; Password protected user levels;
Anonymous login; IEEE802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response Notify control Center; Change camera settings; Command other devices;
E-mail notification with snapshots; Upload video, snapshot to FTP server
• General
Power Source /
Consumption PoE Class 2 (IEEE802.3af) / 4.26 W (IR on)
Weight 292 g (0.64 lb)
Dimensions (Ø x H) 128 mm x 99 mm (5.04″ x 3.90″)
Mount Type Surface, Pendant, Wall, Corner, Pole, Flush
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
