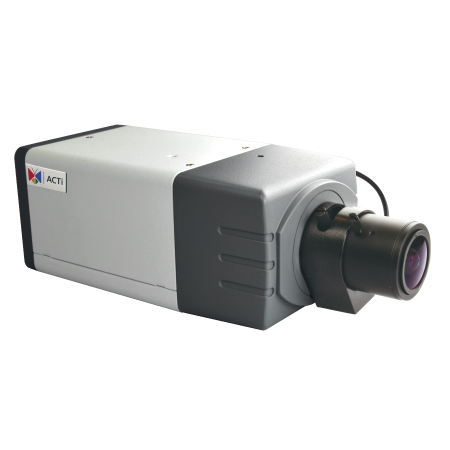

D22

Description

• Device
Device Type Box Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2″
Day / Night Yes
Superior Low Light
Sensitivity No
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400°K);
B/W: 0.05 lux at F2.0 (30 IRE, 2400°K)
Color to B/W switch ISP based switch; Configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100 nm
IR LED No
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Fixed focal, f2.93 mm/ F2.0
Iris Fixed iris
Focus Manual focus
Lens Mount CS Mount (interchangeable lens)
Horizontal Viewing Angle 81.6°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate
vs. Resolution
15fps at 2592×1944; 15 fps at 2048×1536; 30 fps at 1920 x 1080;
30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement White balance: automatic, hold, and manual; Brightness; Contrast;
Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control*
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response Notify control center; Change camera settings; Command other devices;
E-mail notification with snapshots; Upload video, snapshot to FTP server
• Interface
DC Iris Connector External connector for DC Iris lens
• General
Power Source /
Consumption PoE Class 2 (IEEE802.3af) / 4.002W
Weight 410.5 g (0.905lb)
Dimensions (W x H x D) 67.05 mm x 65.02 mm x 145.13mm (2.6″ x 2.6″ x 5.7″)
Environmental Casing Optional housing (IP 66 rated)
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available, ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality);
Other browsers with VLC installed (partial functionality)
