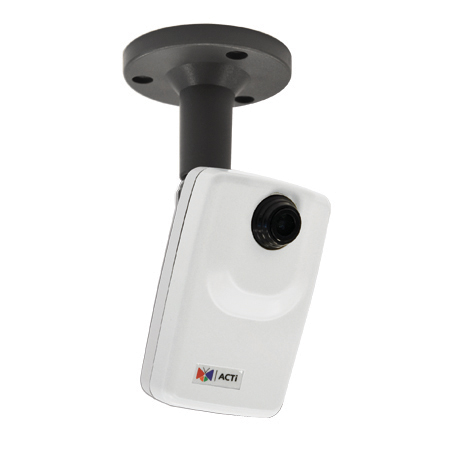

D11

Description

• Device
Device Type Cube Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/4″
Day / Night No
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400 °K)
Mechanical IR Cut Filter No
IR Sensitivity Range No
Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
Focal Length / Aperture Fixed focal, f3.6 mm / F2.0
Iris Fixed iris
Focus Fixed focus
Mount Type Board mount
Horizontal Viewing Angle 60.2°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate
vs. Resolution 30 fps at 1280 x 720; 30 fps at 640 x 480
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement White balance: automatic, hold, and manual; Brightness; Contrast;
Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP,
UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPs encryption; Password protected user levels;
Anonymous login; IEEE802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response Notify control center; Change camera settings; Command other devices;
E-mail notification with snapshots; Upload video, snapshot to FTP server
• General
Power Source /
Consumption PoE Class 1 (IEEE802.3af) / 2.95 W
Weight 140 g (0.31 lb)
Dimensions (W x H x D) 66.50 mm x 103.95mm x 38.75mm (2.62″ x 4.09″ x 1.53″)
Bundled Accessories Bracket
Mount Type Wall, Ceiling
Starting Temperature -10°C ~ 45°C (14°F ~ 113°F)
Operating Temperature -10°C ~ 45°C (14°F ~ 113°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality);
Other browsers with VLC installed (partial functionality
