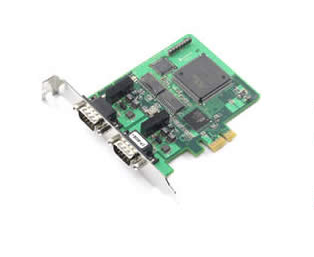

CP-602E-I-T w/o cable 2 Port CANbus PCI Express board -40 to 85Â

CP-602E-I-T 2 CANbus ports, 2 KV isolation, -40 to 85°C operation

Highlights

CAN 2.0A and CAN 2.0B supported
Two independent CAN communication ports
CAN transfer rate up to 1 Mbps
2 KV optical isolation protection
LED for transmit/receive status on each port
Optional 120 ohm terminal resistor for CAN bus network
DLL library and examples included
Windows driver provided

Description

Includes

1 x CP-602E-I Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement

NOTE: Cable not included

Specs:

Number of Ports: 2
Card Interface: PCI Express
CAN Specification: CAN 2.0 A/B
CAN Transceiver: PCA82C251
Signal Support: CAN_H, CAN_L, GND
Transfer Rate: 1 Mbps
Max. Number of Boards per PC: 4

Overview:

The CP-602E-I CAN interface board supports the PCI Express interface. As a stand-alone CAN controller, the CP-602E-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602E-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide the bus arbitration and error detection. 2 KV isolation is standard, and a wide temperature model supporting -40 to 85°C operation is available for harsh environments.
