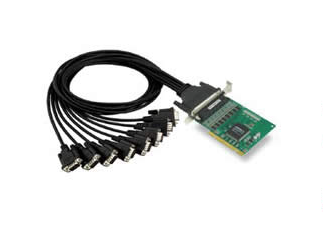

CP-168U-T 8-port RS-232 Universal PCI serial board, -40 to 85°C

CP-168U-T 8-port RS-232 Universal PCI serial board, -40 to 85°C operating temperature

Highlights

Over 700 Kbps data throughput for top performance
921.6 Kbps maximum baudrate for super fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Choose from a wide range of connection cables and boxes
Compatible with 3.3/5V PCI and PCI-X
Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7
15 KV ESD protection on the board
Wide temperature model available for -40 to 85°C environment

Description

Includes

1 x CP-168U unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement

NOTE: Cable not included

Specs:

Comm. Controller
MU860 (16C550C compatible)

Bus
32-bit Universal PCI

Connector
DB62 female

Number of Ports
8

Serial Standards
RS-232

ESD Protection
15 KV on the board

Optical Isolation
500 V with connection box Opt8F (must be purchased separately)

Operating Systems
Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7

Dimensions
82 x 120 mm (3.22 x 4.72 in)

Operating Temperature
Standard Models 0 to 55°C (32 to 131°F)
Wide Temp. Models -40 to 85°C (-40 to 185°F)

Overview:

The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even Unix.

In addition, each of the board’s 8 RS-232 serial ports supports a super fast 921.6 Kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and works with both 3.3V and 5V PCI buses, allowing the board to be installed in virtually any available PC server.
