CP-118EL 8-port RS-232/422/485 low profile PCI Express x1 serial

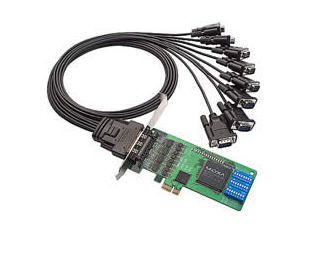

CP-118EL 8-port RS-232/422/485 low profile PCI Express x1 serial board

Highlights

PCI Express x1 compliant
921.6 Kbps maximum baudrate for super fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Choose from a wide range of connection cables and boxes
Low profile form factor fits small-sized PCs
Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/x64), Windows CE 5.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7
15 KV ESD protection on the board

Description

Includes

1 x CP-118EL Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement

Specs:

Comm. Controller
MU860 (16C550C compatible)

Bus
PCI Express x1

Connector
VHDCI 68

Number of Ports
8

Serial Standards
RS-232/422/485

ESD Protection
15 KV on the board

Operating Systems
Windows (2000, XP/2003/Vista/2008 x86/x64), Windows CE 5.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7

Dimensions
67.21 x 132 mm (2.65 x 5.20 in)

Operating Temperature
0 to 55°C (32 to 131°F)

Overview:

The CP-118EL is a smart, 8-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even Unix. In addition, each of the board’s 8 serial ports can be configured independently for RS-232, RS-422, or RS-485 (either 2-wire or 4-wire), and the ports supports a super fast 921.6 Kbps baudrate.

The CP-118EL provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express”x1″classification allows it to be installed in any PCI Express slot.
