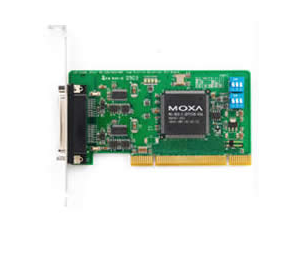

CP-112UL-DB9M PCI board with 2 RS-232/422/485 ports, DB9M connectors

CP-112UL-DB9M PCI board with 2 RS-232/422/485 ports, DB9M connectors

Highlights

Universal PCI compatible with 3.3/5 V PCI and PCI-X
Low-profile board
2 RS-232/422/485 serial ports
Over 700 Kbps data throughput for top performance
128-byte FIFO and on-chip H/W, S/W flow control
Serial communication speed up to 921.6 Kbps
Drivers for Windows 2000, XP, 2003, Vista, 2008 x86/x64, and Linux 2.4, 2.6 (x86/x64)
Easy maintenance with on-board LED display
On-board 15 KV ESD and 2 KV optical isolation protection
Wide temperature model available for -40 to 85°C environment
Models with 2 KV isolation available

Description

Includes

1 x CP-112UL/UL-I Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement

Specs:

Serial Interface
Serial Standards:RS-232/422/485
Number of Ports:2
ESD Protection:15 KV on the board

Physical Characteristics
Dimensions:64.4 x 120 mm (2.53 x 4.72 in)
Operating Temperature: 0 to 55°C (32 to 131°F) standard, -40 to 85°C (-40 to 185°F) for wide temperature models
Operating Humidity:5 to 95% RH
Storage Temperature:-40 to 85°C (-40 to 185°F)

Overview:

The CP-112UL is designed to be used by industrial automation system integrators for long distance, multi-point, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control for enabling and disabling the line driver. The Moxa Turbo Serial Engine chip that powers the CP-112UL comes with on-chip ADDC, which makes RS-485 as easy to use as RS-232. The boards come with 2 RS-422/485 serial ports, each of which can achieve data rates up to 921.6 Kbps. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long distance RS-485 communication, 2 KV optical isolation protection is available to prevent equipment damage. Wide temperature models are also available.

Windows and Linux/Unix OS drivers

Reliable Windows COM Overviewand Linux/Unix TTY drivers are provided for all Moxa serial boards. Other operating systems, such as WEPOS, are also supported for embedded integration.
