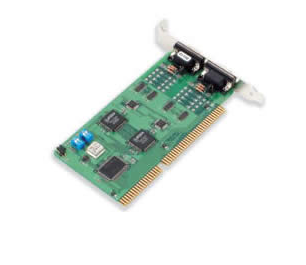

CI-132I 2-port RS-422/485 ISA serial board with optical isolation

Highlights

Economical RS-422/485 ISA boards with 2 DB9 male connectors on the board for easy wiring
RS-485 data direction control with ADDC or by RTS
921.6 Kbps maximum baudrate for super fast data transmission
16-byte FIFO and on-chip hardware flow control
Surge protection and optical isolation available
Built-in termination resistors

Description

Includes

1 x CI-132 Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement

Specs:

Comm. Controller
16C550C or compatible x 2

Bus
16-bit ISA

Connector
DB9 male x 2

Number of Ports
Number of Ports 2

Serial Standards
Serial RS-422/485

ESD Protection
25 KV on the board (CI-132IS only)

Optical Isolation
2 KV (CI-132I/IS only)

Operating Systems
Windows (2000/XP/2003/Vista/2008, 9X/ME/NT), Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), QNX 4/6, FreeBSD 4/5, SCO OpenServer 5/6, UnixWare 7

Dimensions
CI-132 75 x 157 mm (2.95 x 6.18 in)CI-132I/IS 105 x 157 mm (4.13 x 6.18 in)

Operating Temperature
0 to 55°C (32 to 131°F)

Overview:

The CI-132 series ISA boards come with 2 independent RS-422/485 serial ports for connecting data acquisition equipment and other serial devices to a PC. Connect your devices over longer distances—up to 1.2 km (4000 ft)—and ensure greater reliability in industrial environments with on-board surge protection and optical isolation (available with some models). Enjoy greater versatility by using point-to-point full duplex connections, or set up a half duplex RS-485 multi-drop network
