C32010T/PCI 8 to 32-port intelligent RS-232 Universal PCI

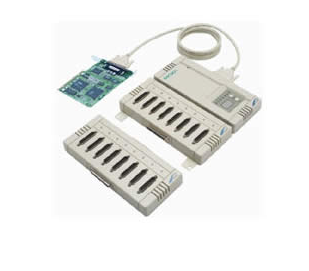

C32010T/PCI 8 to 32-port intelligent RS-232 Universal PCI serial board

Highlights

Supports 128 high-performance serial ports per system
Dramatically decreases host CPU loading
Modular design makes port expansion easy
Monitor transmission status with LEDs on the module and two 7-segment displays
Drivers provided for a broad selection of operating systems
460.8 Kbps maximum baudrate

Description

Includes

1 x C320Turbo Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement
1 x 2-meter DB25-M to DB25-F connection cable

Specs:

Comm. Controller
16C550C or compatible x 8

Bus
C320Turbo/PCI 32-bit: Universal PCI
C320Turbo 16-bit: ISA

Connector
DB25 female

Number of Ports
32 per control board (max.)

Serial Standards
RS-232 (RS-422 available with desktop option)

Operating Systems
Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), DOS, Linux 2.4, Linux 2.6 (x86/x64), SCO Open Server 5/6, UnixWare 7, QNX 4/6

Dimensions
C32010T/PCI: 90 x 120 mm (3.54 x 4.72 in)
C32010T: 107 x 158 mm (4.21 x 6.22 in)

Operating Temperature
0 to 55°C (32 to 131°F)

Overview:

The intelligent C320Turbo serial boards are expandable and flexible COM/TTY solutions for RS-232 applications that require connecting up to 128 serial devices to one computer.

The C320Turbo’s on-board CPU and large dual-port memory take the load off host systems whose performance and scalability are critical for large-scale systems.
